GLC2300-TC41-24V Specifications (End of Sale: 2012/6/29)
Functional Specifications
| Model | GLC2300-TC41-24V →Recommended Substitute | ||
|---|---|---|---|
| Type | TFT Color LCD | ||
| Display Colors | 256 colors (no blink)/ 64 colors (3-speed blink) (software control)*1 |
||
| Backlight | CCFL (Service life: more than 50,000 at 24 hr. operation)*2 | ||
| Resolution | 320 x 240 pixcels | ||
| Effective Display Area (mm) | 115.2(W) × 86.4(H) | ||
| Brightness Control | 4 levels of adjustment available via touch panel | ||
| Contrast Control | - | ||
| Language Character Sets | ASCII: (Code page 850) Alphanumeric (incl. European characters) Chinese: (GB2312-80 codes) simplified Chinese fonts Japanese: ANK 158, Kanji: 6962 (JIS Standards 1 & 2) Korean: (KSC5601 - 1992 codes) Hangul fonts Taiwanese: (Big 5 codes) traditional Chinese fonts |
||
| Text | 8 × 8 dots | 40 char. × 30 rows | |
| 8 ×16 dots | 40 char. × 15 rows | ||
| 16 × 16 dots | 20 char. × 15 rows | ||
| 32 × 32 dots | 10 char. × 7 rows | ||
| Character Sizes*3 | 8 × 8 dots, 8 × 16 dots, 16 × 16 dots, 32 × 32 dots | ||
| Font Sizes | Width can be expanded 1 to 8 times Height can be expanded 1/2*4, 1 to 8 times |
||
| Application Memory | 2MB FLASH EPROM | ||
| Data Backup Memory | SRAM 256KB - uses lithium battery *5 | ||
| Control Memory*6 |
Program Area: FLASH EPROM 128KB |
||
| Touch Panel Resolution | 16 × 12 keys/ screen - 1 or 2 point touch | ||
| External Interfaces | Serial Interface |
Asynchronous Transmission: RS-232C/ RS-422, |
|
| Expansion Serial Interface | Asynchronous Transmission: RS-232C Data Length: 7 or 8 bits Stop Bit: 1 or 2 bits Parity: None, Odd or Even Data Transmission Speed: 2400bps to 38.4kbps |
||
| Network Interface | IEEE802.3, 10BASE-T | ||
| CF Card Interface | 1 slot | ||
| FLEX NETWORK | Communication Configuration |
1:N | |
| Connection Method |
Multi-Drop Connection | ||
| Max. Distance | 200m/channel at 6Mbps, 100m/channel at 12Mbps |
||
| Communication Method |
Cyclic Time Division, half-duplex | ||
| Communication Speed |
6Mbps/ 12Mbps | ||
| Communication I/F |
Differential, pulse-transformer isolation | ||
| Error Check | Format, bit, CRC-12 verification | ||
| Max. Number of Nodes |
63 (1008 I/O points) | ||
| Tool Connector | Asynchronous TTL level nonprocedure command I/F Used for transferring data between the GLC application software and the GLC. Used for data transfer with the 2-Port feature. Used for a variety of devices, including a bar-code reader. |
||
- Changing the "Colors" setting to "256 colors" will disable the blink feature on all your project screens. If you wish to use the blink feature, do not change this setting to "256 colors."
- The GLC2300-TC41-24V is NOT user replaceable.
- The display font will differ depending on which (language) character, or which size you select.
- Only available when using "1/2 Byte Character" settings via software. (Only Japanese, Chinese, Taiwanese and Korean characters.)
- A Lithium battery's lifetime is:
10 years when the battery's ambient temperature is under 40℃
4.1 years when the battery's ambient temperature is under 50℃
1.5 years when the battery's ambient temperature is under 60℃
When used for backup:
Approximately 60 days, with a fully charged battery
Approximately 6 days, with a half-charged battery - The 128-KB program area is allotted in SRAM for online editing use.
- 64KB of Variable data area are supported by Revision 2 or later in GLC model. Prior to Revision 1 is 32KB. The revision code can be easily found using the GLC unit's rear face identification label or revision sticker. In the area titled "REV",the code is indicated by asterisks(*) or marked with a marker pen. Please go to the GLC User Manual for more details.
- SIEMENS SIMATIC S7-200/300/400 Series (MPI port only). Please contact your Pro-face sales representative for supported models and other details.
General Specifications
| Model | GLC2300-TC41-24V →Recommended Substitute | ||
|---|---|---|---|
| Electrical | Rated Voltage | DC24V | |
| Rated Voltage Range | DC19.2 to DC28.8V | ||
| Power Consumption | 22W or less | ||
| Allowable Voltage Drop | 10ms or less | ||
| Voltage Endurance | AC1000V, 20mA for up to 1 minute (between charging and FG terminals) |
||
| Insulation Resistance |
20MΩ or higher at DC500V |
||
| Environmental | Ambient Operating Temperature*9 | 0 to 50℃ | |
| Storage Temperature | -20 to 60℃ | ||
| Ambient Humidity | 10 to 90% RH (non-condensing wetbulb temperature 39℃ or less) |
||
| Storage Humidity | 10 to 90% RH (non-condensing wetbulb temperature 39℃ or less) |
||
| Vibration Resistance | Compatible with IEC61131-2 (JIS B 3502) Compliant When vibration is NOT continuous: 10Hz to 57Hz 0.075mm, 57Hz to 150Hz 9.8m/s2 When vibration is continuous: 10Hz to 57Hz 0.035mm, 57Hz to 150Hz 4.9m/s2 X, Y, Z directions for 10 times (80min.) |
||
| Noise Immunity | Noise Voltage: 1000Vp-p Pulse Duration: 1µs Rise Time: 1ns (via noise simulator) |
||
| Electrostatic Discharge Immunity | Contact discharge of 6kV (IEC 61000-4-2 Level 3) | ||
| Corrosive Gases | Free of corrosive gases | ||
| Structural | Grounding | 100Ω or less, or your country's applicable standard | |
| Ratings | Equivalent to IP65f (JEM1030), NEMA#250 TYPE 4X/12*10 | ||
| External Dimensions | 171mm [6.73in.]W × 138mm [5.43in.]H × 60mm [2.36in.]D | ||
| Weight | 1.2kg (2.6lb) or less (main unit only) | ||
| Cooling Method | Natural air circulation | ||
- When installing the GLC in a cabinet or enclosure, the term “ambient operation temperature” indicates the cabinet or enclosure’s internal temperature. The LCD displays may occasionally blur when they are used for hours at over 40℃ ambient operating temperature. This is a temporary phenomenon. After the temperature returns to normal, the display will be restored to normal. The GLC's operation will not be affected even though the display is blurred.
- The degree of protection provided by these products is equivalent to IP65f, however their performance cannot be guaranteed for every environment. Be sure to confirm your work environment requirements prior to installation.

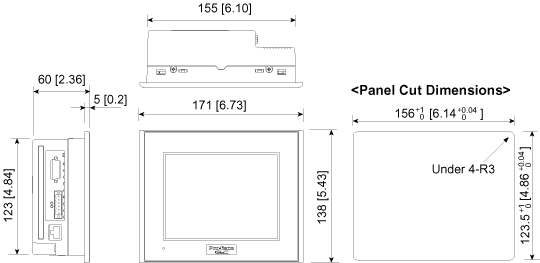

Dimensions
