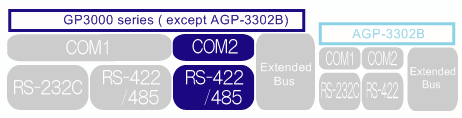

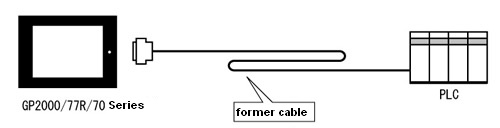

| Important notes for the replacement of the cable from GP2000/77R/70 series to GP3000 series *Be sure to read here. |
| |
| When replacing the hardware from GP2000/77R/70 series to GP3000 series, there are important notes shown below. |
| |
| ● Communication settings |
| ● |
The default setting of communication settings differs between GP-PRO/PB3 for Windows and GP-Pro EX as below. |
|
|
|
GP-Pro/PB3
|
GP-Pro EX
|
|
|
0msec
|
10msec
|
|
|
10sec
|
3sec
|
|
|
2
|
2
|
|
|
|
|
|
| ● Supported devices |
| ● |
In GP-Pro EX, the notation of Bit Device and Word Device is following. |
|
| ・ |
Bit Device Display |
|
|
GP-Pro/PB3
|
GP‐PRO EX
|
|
0900015
|
09000.15
|
|
|
|
|
| ● Warning messages of [Project Conveter] |
| ● |
When a project file of GP-PRO/PB3 will be converted by [Project converter], these messages will show in following cases. |
|
|
|
|
Baud rate which cannot communicate is selected. It is changed into 19200bps which is a default value.
|
GP-Pro Ex doesn't support Baud rate 187500bps. When Baud rate of the project file which is created with Pro/PB3 is set at 187500bps, it will be converted to 19200bps.
|
| The feature of “Multi Link (n to 1)” is not supported yet. This project has been converted to normal (“1 to 1” or “1 to n”) connection. |
GP-Pro Ex doesn’t support Multi Link. When the project file which is created with Pro/PB3 is set with Multi Link ( n to 1), it will be converted to "1 to 1". |
|
|
|
