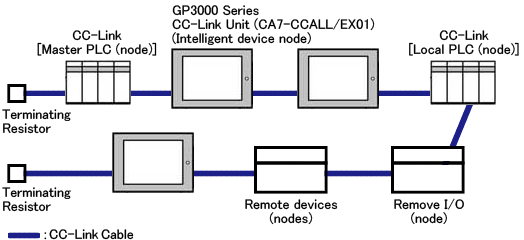

CC-Link Partner Association@CC-Link Intelligent Device
|
When replacing PLC, which is used in GP2000/ 77R/ 70 series, into GP3000 series(except GP3200 series).
|
|
| |
|
Reminder in replacing GP2000/77R/70 series into GP3000 series *Make sure to read it.
|
| Communication Settings |
| - |
The baudrate settings are different between GP-PRO/PB3 and GP]Pro EX. |
|
|
GP-PRO/PB3 supports CC-LINK Version 1.10.
On the other hand, GP-Pro EX supports CC-Link Version 2.0. As for the communication settings, you can specify the extended cyclic settings.
*
The settings will be converted to "Ver 1" for CC-Link Version and "1 time" for the cyclic setting so that Version 2.0 can perform as well as Version 1.10 after conversion.
|
| Address Formats |
|
-
|
If you convert the device address of the cyclic transmission, it will be converted as a device address of an individual device No. 1 (PLC1). Device addresses starting with M9_ or D9_ will be converted to addresses starting with SM or SD respectively. @@
|
GP-PRO/PB3
|
GP]Pro EX
|
|
Address
|
Station number
|
Address
|
|
RX000
|
-
|
RX0000
|
|
32.M9_000
|
32
|
SM00000
|
|
64.D9_000
|
64
|
SD00000
|
With GP-Pro EX, station numbers are set per device beforehand and addresses are set. RX/RY/RWw/RWr, which are device addresses for the cyclic transmission, will be the same addresses after conversion since they do not depend on devices. |
|
-
|
The driver will be converted as the Q series. Therefore, if you have specified a bit of the address starting with TN, SN, CN, D, D9_, SD, or R, the bit position will be converted to hexadecimal.
|
GP-PRO/PB3
|
GP]Pro EX
|
|
Address
|
Station number
|
Address
|
|
0.D000015
|
0
|
D00000.F
|
|
32.D000014
|
32
|
D00000.D
|
|
|
|
-
|
The transmission format of CC-Link can represent only from 0 to 65535. If you have specified 65536 or above in GP-PRO/PB3, the communication with the specified address will fail. (device addresses starting with M, L, SM, TS, TC, SS, SC, CS, CC)
If you convert the address out of the range of GP-Pro EX, it will be "-Undefined-".
|
GP-PRO/PB3
|
GP]Pro EX
|
|
TS999984
|
- Undefined -
|
|
C999999
|
- Undefined -
|
|
| Warning message of [Project converter] |
| - |
When the project file of GP-PRO/PB3 will be converted by [Project converter], these messages will show in following cases. |
|
|
Warning Message
|
Description
|
|
The configuration of "Series" is set to "Melsec Q Series / QnA Series" as default. Please check on the editor of GP-Pro EX.
|
The Series on the individual device settings has been set to "Melsec Q Series / QnA Series". Please make sure to change it to the target model to be connected after converting. |
| Can not convert all addresses so that stations more than 27 of them more than specifications of CC-Link were registered. |
Converting all the addresses has failed because stations more than the specifications of CC-Link are registered.
Due to the specifications of CC-Link, the total number of stations such as local stations, stand-by stations, intelligent device stations has to be 26 or less per one master.
Set the number of stations which can be supported after conversion.
|
| Station number of occupied is over 64. Converted number of occupied stations to 1 |
The station numbers of CC-Link are up to 64. If you have set the number of occupied stations to 2 or above, the occupied number of the last station have to be 64 or below.
Check the station number again after conversion.
|
|
|
|
@
