1.3 Supported FeaturesAvailable extensions differ depending on the model. Please check whether your model supports the feature before use.

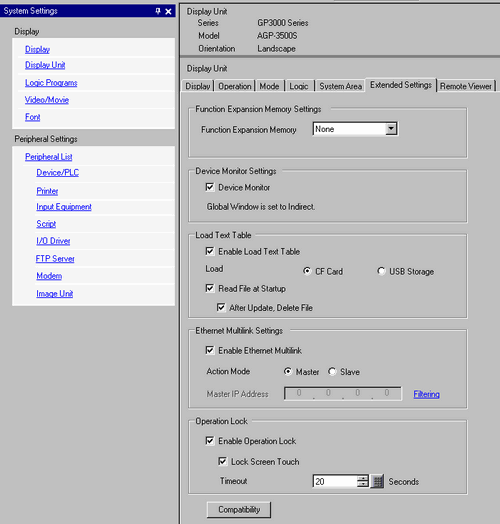

Function Expansion Memory Settings
When [8M] is selected, the maximum registration number of the Alarm Monitor Device increases to 32767.
In order to use Function Expansion Memory Settings, install GP3000 Series Function Expansion Memory (Optional Item). However the Function Expansion Memory is unnecessary when using IPC series.
Please refer to the following for the models that allow Function Expansion Memory Settings.1.3 Supported Features
Device Monitor Settings
Specifies whether to use the device monitor feature.
For the device monitor settings, see below.A.2 Monitoring the Value of Device Addresses (Device Monitor)
Load Text Table
Specify whether to enable text table loading.
Load
Select [CF Card] or [USB Storage] for the location of the text table file (CSV).
Read File at Startup
Specify whether to read the text table file when starting up the display unit.
This option runs only after the display unit is powered OFF.
After Update, Delete File
Specify whether to delete the file after updating the text table. This is specified when [Read File at Startup] is enabled.
Specify whether to enable EtherNet Multilink.
For information on EtherNet Multilink, the following.7.7.3 System Settings - Extended Settings - Ethernet Multilink Settings
Specifies whether to use the Operation Lock feature.
For information on the operation lock settings, see the following.7.7.4 System Settings - Extended Settings - Operation Lock
Compatibility
Click to display the [Compatibility] dialog box.
When a project file created in GP-Pro PB III for Windows is converted, it may operate differently in GP-Pro EX. This dialog box aligns GP-Pro EX to match features in GP-Pro PB III for Windows.
Filling in Parts
When this check box is selected, the method of filling in parts will be the same as GP-Pro PB III for Windows. In GP-Pro EX, filling in Parts may not occur in the converted project file.
Window Part
When the Window Part check box is selected, upper left of the base screen is used as the coordinate position of Window Parts even when Window Part is placed on the load screen. In GP-Pro EX, the upper left of the load screen is used as the coordinate position of Window Part.
When the Draw Using Standard Font check box is selected, text will be displayed in Gothic Font even then it is standard font and text size is larger than 32 X 32. In GP-Pro EX, text will display using Mincho font.
Please refer to the following for the models support Standard Font.1.3 Supported Features
