35.5.2.1 Cancel Printing by Touch (Direct Access)

Create a switch to turn ON the internal device LS14 Bit 11.

1. From the [Parts (P)] menu, select [Switch Lamp (C)], point to [Bit Switch (B)], and draw the Switch Part on the screen. Alternatively, you can click and then draw the Switch Part.

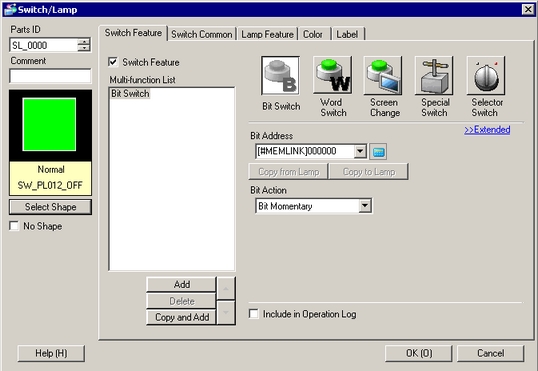

2. Double-click the placed Switch part. The following dialog box appears.


3. In [Select Shape], select the Switch shape.

4. In the [Bit Address] field, define bit 11 (print cancel bit) from display unit internal device address LS14.



   • Alternatively, select the variable #H_Control_PrintCancel from the [Bit Address] drop-down menu to create the same operation switch.

5. Confirm [Bit Momentary] is selected as the [Bit Action].

6. As needed, set the color and display text on the [Color] tab and [Label] tab, and click [OK].

   A momentary switch to cancel the print has been created.
