Please refer to the Settings Guide for details.
14.11.1 Numeric Display
For details on how to draw parts, and define the address, shape, and color, please see the following.
8.7.1 Editing Parts
From the [Parts (P)] menu, point to [Data Display (D)] and select [Numeric Display (N)], or click the icon, and place it on the screen.
Double-click the placed Data Display. The Data Display dialog box appears.
Select a part shape as necessary. Deselect [No Shape], and select a shape from [Select Shape].
In [Monitor Word Address], set up the address to store the displayed numeric value.
In the [Data Type] drop-down list, set the type of data to display (for example, 16 Bit Dec).

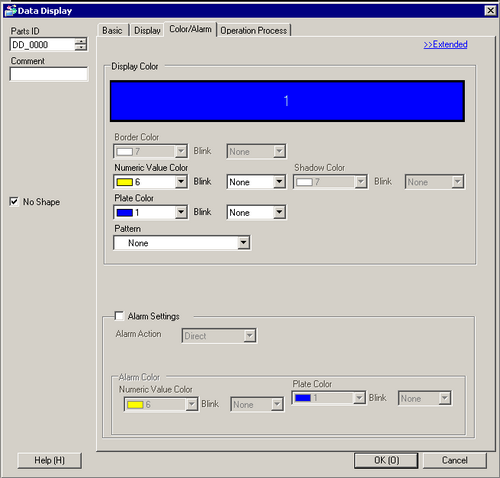

Click the [Alarm/Color] tab, and click [Extended].
Specify the boundary value for color coding in the [Ranges]. (Example: 4)
In the [Specify Range] area, choose the way how the min/max value range is specified. (For example, Constant)

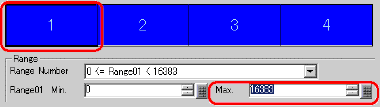

In the alarm color display bar, select 1 and set the minimum and maximum values for [Range 01]. (For example: From = 0, To = 2000)
In the [Alarm Color] area, set the [Numeric Value Color] (for example, Yellow) and the [Plate Color] (for example, Blue) for [Range 01].
Similarly, set Ranges 2 to 4 as follows:
Range 2: minimum value 2000, maximum value 5000, Numeric Value Color: Red, Plate Color: Blue
Range 3: minimum value 5000, maximum value 8000, Numeric Value Color: Black, Plate Color: Yellow
Range 4: minimum value 8000, Numeric Value Color: Yellow, Plate Color: Blue
Set the font in the [Display] tab as necessary and click [OK].
