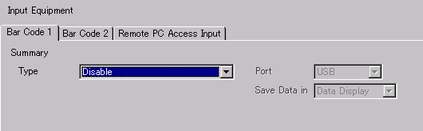

Type
Select the barcode type to connect.
Not in use
Select when a barcode/two-dimensional code reader is not in use.
Select when using a barcode
reader.
16.6.1.1 Bar Code Reader
two-dimensional code reader
Select when using a two-dimensional code reader.
16.6.1.2 Two-dimensional Code Reader
Port
Select the port for connection.
16.6.1.2 Two-dimensional Code Reader
Save Data in
Select the code data storage location as either [Data Display] or [Internal Device].
