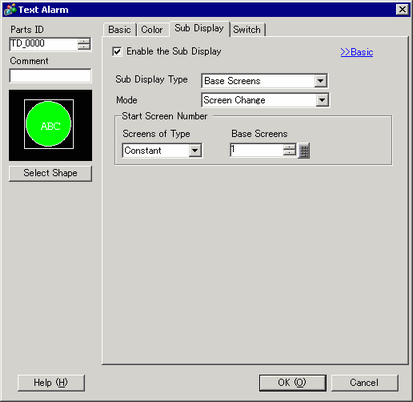

Configure settings to change a Base or Window Screen into a Sub Screen, or to use a Picture Display or a Message Display to display a sub screen on a Base or Window Screen.
Enable the Sub Display
Select whether or not to use a Sub Display.
Sub Display Type
Select the Sub Display Type.
Base Screen
Change the display to other screen, or display pictures or text on a base screen.
Window Screens
Display a Sub Screen in a Window. Change the window to another one, or display a picture or text in the Window.
Mode
Select the Sub Display action type.
When [Base Screen] is selected for [Sub Display]
Screen Change
Change the Base Screen to display the sub screen.
Change Picture Display
Use a Picture Display to display the sub screen.
Text Display Change
Use a Message Display to display the sub screen.
When [Window] is selected for [Sub Display]
Window Change
Change the Window Screen to display the sub screen.
Change Picture Display
Use a Picture Display on the Window Screen to show the sub display.
Text Display Change
Use a Message Display on the Window Screen to display the sub screen.
[Base Screen] - [Screen Change]
This setting changes the entire screen to another screen. It works the same as a normal screen change.
Start Screen Number
Set the Base Screen Start Number to display a sub screen. Select the method to designate the screen Number from [Constant] or [Address].
Constant
Designate a set constant as the Base Screen Start Number. The setting range is from 1 to 9999.
Address
Select a word address that stores the Base Screen Start Number
[Base Screen] - [Change Picture Display]
Display a picture corresponding to the Alarm Message in the Picture Display placed on the same screen as the Text Alarm Part.
Start Screen Number
Set the start number of the Base Screen for the sub display in the Picture Display
Select the method to designate the screen Number from [Constant] or [Address].
Constant
Designate a set constant as the start Number of the screen used for picture display. The setting range is from 1 to 9999.
Address
Select a word address that stores the start Number of the screen used for picture display.
Picture Display Word Address
Set a word address to store the screen Number of the screen displayed in a Picture Display.
Set the same address as the [Word Address] of the Picture Display placed on the same screen as the Text Alarm Part.

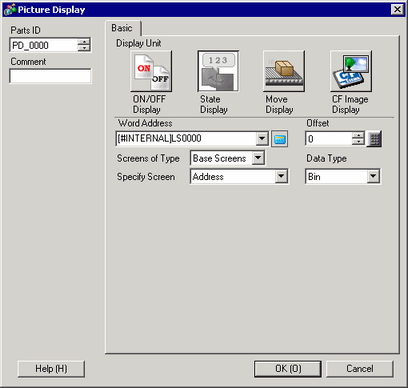

With [State Display] selected, in [Screens of Type] select [Base Screen], in [Specify Screen] select [Address], and in [Data Type] select [Bin].
[Base Screen] - [Text Display Change]
Display a text corresponding to the Alarm Message in the Message Display placed on the same screen as the Text Alarm Part.
Start Screen Number
Sets up the start number for the sub display's text that will appear in the "Message Display".
Select the method to designate the text Number from [Constant] or [Address].
Constant
Designate a set constant as the Text's Start Number. The setting range is from 1 to 8999.
Address
Select a word address that stores the Text's Start Number.
Text Display Word Address
Set a Word Address to store the Text File Number of the text displayed in a Message Display.
Set the same address as the [Text File Number Word Address] of the Message Display placed on the same screen as the Text Alarm Part.

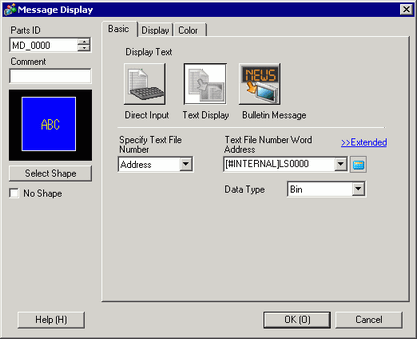

Set the Message Display [Text Display]'s [Specify Text File Number] to [Address], and [Data Type] to [Bin].
[Window Screen] - [Window Change]
Displays the Window Screen which corresponds to the Alarm Message.
Start Screen Number
Defines the sub display window screen start number
Select the method to designate the Window Screen from [Constant] or [Address].
Constant
Designate a set constant as the start Number of the Window Screen used for a Sub Display. The setting range is from 1 to 2000.
Address
Select the word address that stores the start number of the sub display window screen.
Window Settings
Configure the Window settings.
Local/Global
Defines whether to use a local window or global window for the Sub-Display.
Using a global window for the Sub-Display, refer to 12.6.1 Procedure - Changing the Window on All Screens. On the [System Settings] window, select [Display Unit]. In the [Action] tab, set [Global Window Operation] to [Indirect], and [Data Type] to [Bin]. Use LS16 to display or erase the Window.
Window Control Address
To use a local window for a Sub Display, designate the address used to control the window display. Four consecutive words will be used, starting from the designated address.
Set the same address as the [Window Control Address] of the Window Part placed on the same screen as the Text Alarm Part.
12.7.2 Window - Word Action / Basic
Set the Window Part [Window Specification] to [Address], and [Data Type] to [Bin].
[Window Screen] - [Change Picture Display]
Display a picture corresponding to the Alarm Message in the Picture Display placed on the Window Screen.
Start Screen Number
Set the Base Screen Start Number to display a sub screen for a Picture Display on the Window Screen. Select the method to designate the screen Number from [Constant] or [Address].
Constant
Designate a set constant as the start Number of the screen used for picture display. The setting range is from 1 to 9999.
Address
Select a word address that stores the start Number of the screen used for picture display.
Picture Display Word Address
Set a word address to store the screen Number of the screen displayed in a Picture Display.
Set the same address as the [Word Address] of the Picture Display placed on the Window Screen.
With [State Display] selected, in [Screens of Type] select [Base Screen], in [Specify Screen] select [Address], and in [Data Type] select [Bin].
Window Settings
Configure the Window settings.
Local/Global
Set whether to use a local window or global window for a Sub Display.
Using a global window for the Sub-Display, refer to 12.6.1 Procedure - Changing the Window on All Screens. On the [System Settings] window, select [Display Unit]. In the [Action] tab, set [Global Window Operation] to [Indirect], and [Data Type] to [Bin]. Use LS16 to display or erase the Window.
Window Screen
Designate the Screen Number of the window used for a Sub Display from 1 to 2000.
Window Control Address
To use a local window for a Sub Display, designate the address used to control the window display. Four consecutive words will be used, starting from the designated address.
Set the same address as the [Window Control Address] of the Window Part placed on the same screen as the Text Alarm Part.
12.7.2 Window - Word Action / Basic
Set the Window Part [Window Specification] to [Address], and [Data Type] to [Bin].
[Window Screen] - [Text Display Change]
Display text corresponding to the alarm message in the Message Display part drawn on the Window Screen.
Start Screen Number
Set the Start Number of the text for a sub screen displayed in a Message Display on the Window Screen.
Select the method to designate the text Number from [Constant] or [Address].
Constant
Designate a set constant as the Text's Start Number. The setting range is from 1 to 8999.
Address
Select a word address that stores the Text Start Number.
Text Display Word Address
Set a Word Address to store the Text File Number of the text displayed in a Message Display. Set the same address as the [Text File Number Word Address] of the Message Display placed on the Window Screen.
Set the Message Display [Text Display]'s [Specify Text File Number] to [Address], and [Data Type] to [Bin].
Window Settings
Configure the Window settings.
Local/Global
Set whether to use a local window or global window for a Sub Display.
When using a global window for the Sub-Display, refer to 12.6.1 Procedure - Changing the Window on All Screens. On the [System Settings] window, select [Display Unit]. In the [Action] tab, set [Global Window Operation] to [Indirect], and [Data Type] to [Bin]. Use LS16 to display or erase the Window.
Window Screen
Designate the Screen Number of the window used for a Sub Display from 1 to 2000.
Window Control Address
To use a local window for a Sub Display, designate the address used to control the window display. Four consecutive words will be used, starting from the designated address.
Set the same address as the [Window Control Address] of the Window Part placed on the same screen as the Text Alarm Part.
12.7.2 Window - Word Action / Basic
Set the Window Part [Window Specification] to [Address], and [Data Type] to [Bin].
