38.3.3.1 Selecting the Display Unit and Device/PLC - WinGP

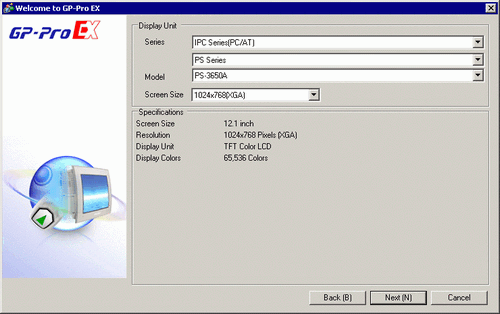

1. In the [Series] of [Display Type], select [IPC Series (PC/AT)] and select the type you use.

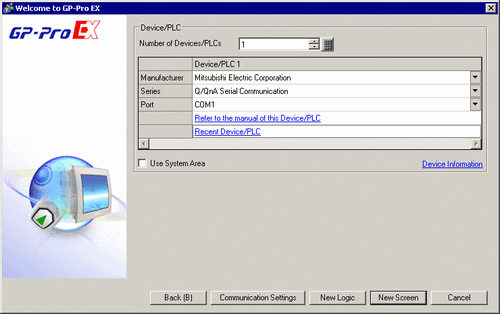

2. Select the device/PLC [Maker] and [Series] that you are connecting to the IPC. If connecting the device/PLC to the IPC COM port, for the [Port] select COM1 to COM9.


3. Click [Communication Settings] to set up the communication format and other settings. The setup procedure is the same as 5.2.1 Procedure - Starting/Creating/Saving/Exiting, steps 6 to 7.
