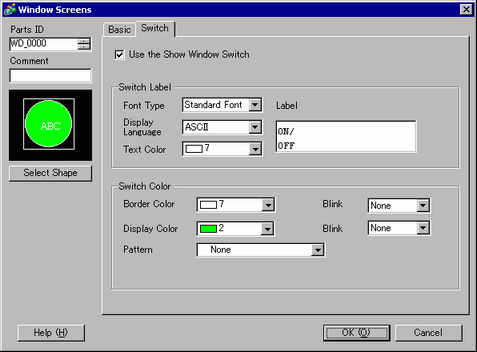

When the [Window Type] is set to [Activate Switch], a switch can be used with the Window.
Use the Show Window Switch
Select a switch to show or hide the Window. The switch is automatically placed in the top-right of the window. You can move it by selecting it.
Switch Label
Font Type
Select the font type that will be displayed on the Switch label.
Standard Font
The vertical and horizontal dimensions of a character can be specified in bitmap font. When you magnify/shrink characters, the outline may become rough or the letter may appear compressed.
Stroke Font
This is an outline font where the ratio of the character height/width is fixed. The letters will have a smooth outline even if you magnify/shrink them. However, this font uses more disk space on the display unit.
Display Language
Select a language for the label on the switch from [Japanese], [ASCII], [Chinese (Traditional)], [Chinese (Simplified)], [Korean], [Cyrillic], or [Thai].
Text Color
Select a color for the label text.
Label
Type the switch text.
When you select a switch and press the [F2] key, you can directly edit the text on the label.
Switch Color
Border Color
If it exists, select a color for the Part Shape border.
Display Color
Select the Switch color.
Pattern
Select from the 8 patterns or choose [No Pattern].
Pattern Color
If a pattern has been selected, choose a pattern color.
The Switch color appears as a combination of the [Display Color] and [Pattern Color].
Blink
Select the Part blink and blink speed. You can choose different blink settings for the [Border Color], [Foreground], and [Pattern Color].
There are cases where you can or cannot set Blink depending on the Display Unit and [Display] tab's [Display Settings] area.8.5.1 Setting Colors
Color
Select the Switch color. The display will show a different colored image as the selected part image.
Depending on the shape, you may not be able to set the [Display Color], [Pattern Color], [Border Color], [Color], and so on.
