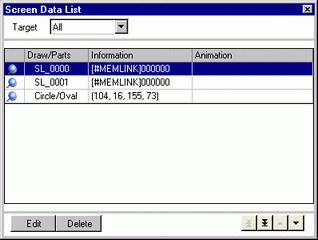

5.18.5.6 Screen Data List Window

The relationship between the order of processing for parts and the [Screen Data List] display order is as follows.
The order in which parts are processed is the same as the [Screen Data List] when you set the [Target] to [Parts]. The same is true for switches set up with multiple functions.
The processing for when a switch is touched and the processing for parts on the screen may drift slightly. There are timing issues between when the switch is touched and when the touch is detected.
The first time after a screen change, the display order is processed the same as the [Screen Data List], when [Target] is set to [All].
Drawings are processed once after a screen change in the same order as the [Screen Data List] when you set the [Target] to [Draw]. From the second time onward, only parts need to be processed.
As a result, when the image changes as a result of parts movement, the most recent drawings display.

Target

Select the targets to display in the list from [All], [Draw], or [Parts].

Target Assistance

Select the type of targets to display in the list when the [Target] is [Draw] or [Parts].

Display List

Displays a list of the parts and drawings on the screen. Double-click a row to open the corresponding settings dialog box. When rows are colored gray, it indicates they are hidden from the display. You can click to display these rows. For more details on the Display Navigator, see the following.

8.13.3.3 Preferences - Display

Draw/Parts

Displays the Draw type when the [Target] is [Draw] or the Parts ID number when the [Target] is [Parts]. When an item is grouped, displays "Group Object". Displays "D-Script" when [D-Script] is selected.

Information

Displays the coordinate when the [Target] is [Draw] or all the Parts' addresses when the [Target] is [Parts]. Displays the ID number and comment when [D-Script] is selected or the coordinate and all the addresses in a group when Group Object is selected.

Animation

Icon for the selected animation feature is displayed. For more details on the animation feature, refer to:

20.7 Settings Guide

Show Fixed Pins

Shows whether or not the part or drawing is fixed. For details on the fixed pins , see the following.

8.4.13 Protecting Objects That You Do Not Want to Edit

Edit

Displays the setting dialog box for the Part/Draw selected on the display list.

Delete

Deletes the Part/Draw selected on the display list.

To Top/Move Up

Moves the item selected on the display list either to the top or up one.

To Bottom/Move Down

Moves the item selected on the display list either to the bottom or down one.
