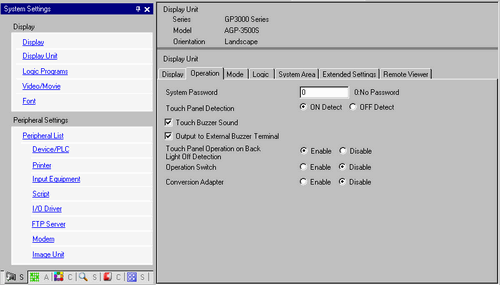

5.19.3 Display Unit (Operation) Settings Guide

System Password

Set the system password for the initial settings or to go offline from 0 to 99999999. Set "0" when a system password is unnecessary.

Touch Panel Detection

Select the detection timing from [ON Detect] (when touching the touch panel) or [OFF Detect] (when taking your finger off the touch panel).

Touch Buzzer Sound

Set whether or not to sound the built-in buzzer when touching the screen.

Output to External Buzzer

Set whether or not to output the touch panel buzzer to the external buzzer terminal.

Panel Operation on Back Light Off Detection

Set whether or not to enable touch panel operations when the backlight is burned out.

Operation Switch

When the [Enable] check box is selected, the display unit accepts inputs from the touch panel or function keys only when the Operation Switch (OP) is pressed. For more information about the operation switch, please refer to the following.

39.6.2 Display Unit (Operation) Settings Guide

Conversion Adapter

When enabled, pressing the [F1] and [F2] keys outputs DOUT via the conversion adapter (optional part).

For more information about the conversion adapter, please refer to the following.

39.6.2 Display Unit (Operation) Settings Guide
