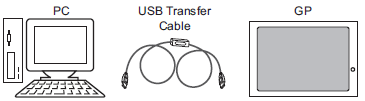

Use a USB cable to connect the computer and display unit, and transfer project files (*.prx).
You can use the following USB cables.
|
Display Unit |
USB cable |
|
Display Units (except GP-4100 Series) |
USB transfer cable (CA3-USBCB-01, manufactured by Pro-face) |
|
GP-4100 Series |
USB transfer cable (ZC9USCBMB1, manufactured by Pro-face) |
For information about the specifications or installation of the USB transfer cable (ZC9USCBMB1), refer to the Installation Guide included in the USB cable package.
Connect the large plug to the computer and the small plug to the display unit, when connecting the USB transfer cable (ZC9USCBMB1) or USB cable (Type A mini B).
One GP-4100 Series can be connected to one PC. Do not connect more than 2 USB cables.

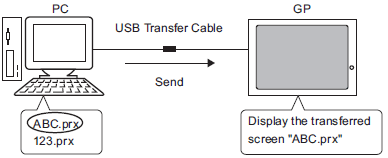

Transfer from PC to Display Unit (Send)
You can send the selected project files (*.prx) to the display unit to display the project.
33.2.1 USB Transfer - Transferring from Computer to Display Unit (Send)

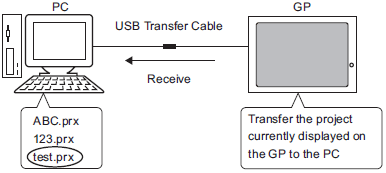

Transfer from Display Unit to PC (Receive)
Project data stored in the display unit can be saved to the PC as a new project file (*.prx)
33.2.2 USB Transfer - Transferring from Display Unit to Computer (Receive)
