Without connecting USB or Ethernet cables, you can transfer project files between the display unit and your PC using an external memory such as a CF Card or USB storage device. These storage devices further allow you to copy files from one display unit to another.

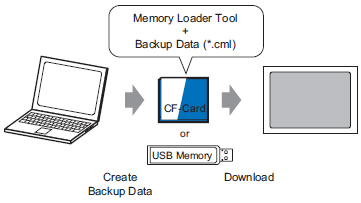

Transfer from Computer to Display Unit
On the display unit, downloads and displays the project backup data stored on a CF Card or USB storage device.
33.7.1 Transfer - Transferring Project Files from PC to Display Unit

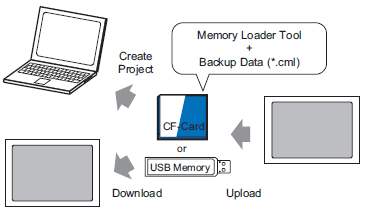

Transfer from Display Unit to Computer
Uploads the backup data from the display unit to a CF Card or USB storage device and loads the data to the PC as a project file. You can also download and display the backup data on a different display unit.
To backup (upload) the project onto the display unit's CF card/USB storage, or to move (download) the project from backup data on a CF card/USB storage, the Memory Loader Tool must also be saved to the CF card/USB storage.
The Memory Loader Tool is different between CF Cards and USB storage devices.
Data saved in the CF card folder cannot be used in USB storage. Similarly, data saved in the USB storage folder cannot be used on a CF card.
You may not be able to use a CF card or USB storage device, depending on the display model. Please see the following.1.3 Supported Features
