Action
Create a script which detects the rising edge (0 to 1) of bit address M0100 and copies data stored in the connected device into another address.
Commands Used
Copies a stored value into a device in one operation.
Data for the number of Addresses will be copied to the copy destination Word Addresses beginning from the source data's first Word Address.
[Format]
memcpy ([Copy To Address], [Copy From Address], Words)
Trigger
In [Trigger], select [Bit ON], and set the [Bit Address] to M000100.

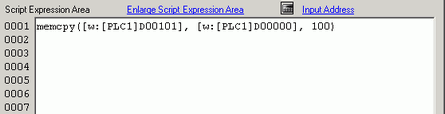

Completed Script
