24.8.4.6 Display/Save in CSV/Calculation Settings - Alarm

Alarm

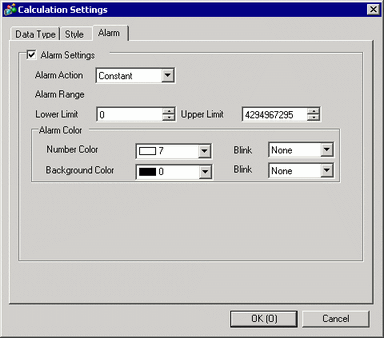

Designate whether or not the use alarm display (change the calculation data color when the value goes outside of the alarm range).

Alarm Action

Select the action when the alarm is active from [Constant] or [Address].

Alarm Range

• When [Constant] is selected for [Alarm Action], set the [Upper Limit] and the [Lower Limit] within the following range.

Data Type	Sign +/-	Display Range
Dec	Disable	0 to 4294967295
	Enable	-2147483648 to 2147483647
Hex	—	BCD
BCD	—	0 to 99999999
Float	Selected (Fixed)	-9.9e16 to 9.9e16

• When [Address] is selected for [Alarm Action], set the [Upper Limit] Address. The [Lower Limit] will be the sequential address from the [Upper Limit] word address.

When the specified address is 16 bit

When the specified address is 32 bit

• Even if you select [16 Bit] or [32 Bit] for the [Bit Length] in the [Address] tab, the numeric value will be 32 bit.

Numeral Value Color

Select the numeric value color for when the Alarm is displayed.

Background Color

Select the background color for when the Alarm is displayed.

Blink

Select the blink and blink speed. You can choose different blink settings for the [Numeric Value Color] and [Background Color] in the alarm color.
