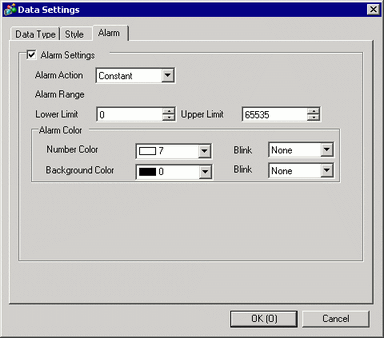

Alarm
Designate whether or not to display an alarm (change the data color when the value goes outside of the alarm range).
Alarm Action
Select the action when the alarm is active from [Constant] or [Address]. The [Alarm Range] settings will vary, depending on the selected action.
When [Designate the Input/Display Range] in [Data Type] tab is specified, this setting is fixed to [Constant]
Alarm Range
When [Alarm Action] is [Constant]
When [Designate the Input/Display Range] in [Data Style] tab is not designated, set the [Upper Limit] and [Lower Limit] within the following range.
|
Bit Length |
Data Type |
Display Sign +/- |
Display Range |
|
16 bit |
Dec |
Disable |
0 to 65535 |
|
Enable |
-32768 to 32767 | ||
|
Hex |
— |
0 to FFFF(h) | |
|
BCD |
— |
0 to 9999 | |
|
32 bit |
Dec |
Disable |
0 to 4294967295 |
|
Enable |
-2147483648 to 2147483647 | ||
|
Hex |
— |
BCD | |
|
BCD |
— |
0 to 99999999 | |
|
Float |
Selected (Fixed) |
-9.9e16 to 9.9e16 |
When [Designate the Input/Display Range] in [Data Style] tab is specified, the [Upper Limit] and [Lower Limit] will not be set.
When [Address] is selected for [Alarm Action], set the [Upper Limit] Address. The [Lower Limit] will be the sequential address from the [Upper Limit] word address.
When the specified address is 16 bit

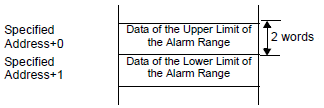

When the [Bit Length] is [16 Bit]

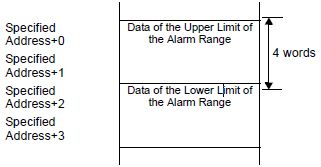

When the [Bit Length] is [32 Bit]
When the specified address is 32 bit

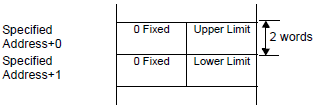

When the [Bit Length] is [16 Bit]

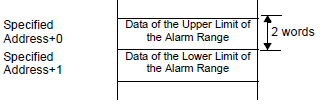

When the [Bit Length] is [32 Bit]
Whether you select [16 Bit] or [32 Bit] in [Address], the range of sequential address varies.
Numeral Value Color
Select the numeric value color for when the Alarm is displayed.
Background Color
Select the background color for when the Alarm is displayed.
Blink
Select the blink and blink speed. You can choose different blink settings for the [Numeric Value Color] and [Background Color] in the alarm color.
There are cases where you can or cannot set Blink depending on the Display Unit and [Display] tab's [Display Settings] area.
8.5.1 Setting Colors
Please refer to the following for models that support alarm range addressing of Sampling.1.3 Supported Features
When alarms are set up in the data portion, the alarm range is determined by the value before rounding off. Calculations use values after rounding off. As a result, even if the data and calculation have the same alarm range, the display color may be different.
When [Data Type] is [Float], the alarm range is determined by one fractional digit after the defined number of decimal places. As a result, even if the display value is the same, the display color may be different.
For example, displays [10.0] (Digits = 3, Decimal Places = 1), and alarm range is 0 to 10
When actual value is 10.01, displays alarm color
When actual value is 10.001, displays normal color
