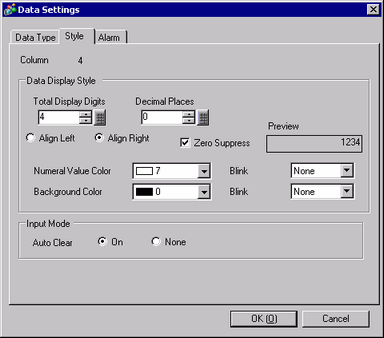

Total Display Digits
Select the number of display digits for the data from 1 to 17. This can be designated to within the number of characters set in [Item Name (Vertical)Characters]. The numbers displayed after the decimal point are also included in the number of digits.
For example,
When the Total Display Digits is 5, and the Number of Decimal Places is 2, it will look as follows:
Decimal Places
Set the number of display digits after the decimal point, from: 0 to [Total Display Digits]-1.
This cannot be set when the [Data Type] is [Hex].
Align Right/Align Left
Select the data display position.

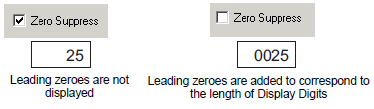

Zero Suppress
If this option is selected, leading zeros are not displayed.
For example, Number of Display Digits = 4
Preview
Preview the selected style.
Numeral Value Color
Set the numeric value color.
Background Color
Select a background color for the numeric values.
Blink
Select the blink and blink speed. You can choose different blink settings for the [Numeral Value Color] and [Background Color].
There are cases where you can or cannot set Blink depending on the Display Unit and [Display] tab's [Display Settings] area.
8.5.1 Setting Colors

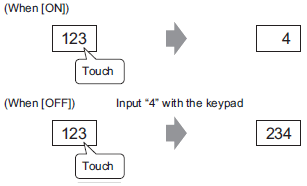

Auto Clear
Select whether or not to clear previously inputted values when correcting data on the screen. If [ON] is set, previous values are deleted when a value is inputted, and only the new value is displayed. If [None] is set, previous data remains, and the new value is added to the end.
(For example, Number of Display Digit = 3)
