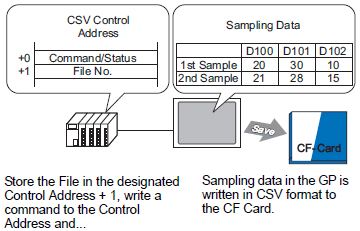

The data (sampling data) sampled by sampling feature is saved in CSV format on a CF Card or USB storage device.
The sampling data (SA*****.csv) saved on a CF card/USB storage device can be analyzed using general spreadsheet software (such as Microsoft Excel) on a computer or used in databases.
24.6.1 Procedure - Saving Sampled Data to CSV Files
Sampling data (SA*****.csv) in the CF Card can be displayed on the display unit using a Special Data Display [File Manager] and Special Data Display [Show CSV].25.7 Displaying/Editing CSV data on the Screen
If there is not enough free space on the CF Card, allocate more disk space by moving non-urgent data within the CF Card to USB storage.A.5 Transferring Data Between a CF Card and a USB Storage Device
For more detailed information about CSV saving of sampling data, refer to the following.24.11.4 Saving to CSV
