24.11.4.4 CSV File Displayed in Excel

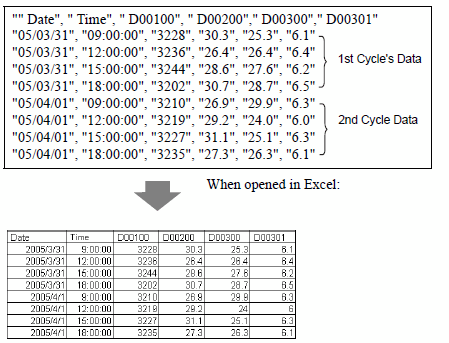

The following example will introduce the contents of a sampling data file (*.csv) saved to the CF Card or USB Storage device and opened in Excel.

If the CSV file size is too large, Excel or other software may not be able to open it.
Sampling data (*.csv) is outputted partly in a fixed format, regardless of the settings on the [Display/Save in CSV] tab. For more details, please refer to the following.
24.11.4.3 CSV File Format

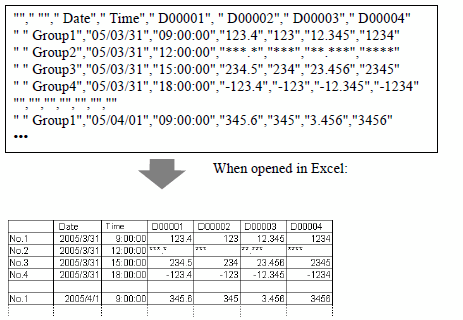

When you select [Hex] as the [Data Type] and open the output CSV file in Excel, the data format may be edited, as follows, by Excel's auto-recognition feature. Check the content of the CSV data in a text editor.
For example, CSV data: "3E8" -> :3.00E+08 in Excel

Normal Save occurs when the [Overwrite old data after finishing the specified cycles] check box is cleared in the [Mode] tab's Extended area.
