25.8 Common (Recipe) Settings - CSV Data
25.9.1 Data Transmission
For details on how to draw parts, and define the address, shape, color, and labels, please see the parts editing topic.8.6.1 Editing Parts
On the screen's Special Data Display [Data Transmission], set the options for transferring CSV data by touch.
From the [Common Settings (R)] menu, point to [Recipe (R)] and select [Transfer CSV Data (Condition) (T)] command, or click
from the toolbar. The following window appears.
Select the [Transfer CSV Data] check box, and define the [Action Mode] as [Condition Action], and [Write Mode]
In [Condition], click [New]. The [CSV Data Transfer Condition] dialog box appears.
Enter the [Condition Number] and [Condition Name] to be registered. (Example: Condition Number: 0, Condition Name: Materials)
In the [Destination Word Address] field, set the start address for the destination device/PLC address (D100) and then set the number of data (6), data type (Dec), and bit length (16 bit) to transfer.
Designate the [Start] and [End] of the recipe file (ZR*****.csv).
Files "ZR00000.csv" to "ZR00010.csv" are transferred according to the condition.
Click [OK (O)].

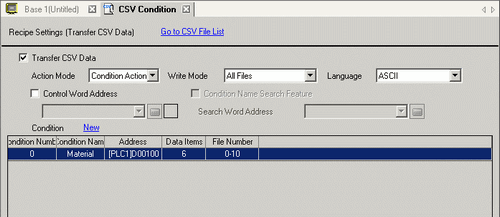

The condition appears in the [Condition] list.
Create as many conditions as required.
To delete a registered conditions, select and enter the [Delete] key from the list.
Open the screen editor. From the [Parts (P)] menu, point to [Special Data Display (P)] and select [Data Transmission (D)] or click

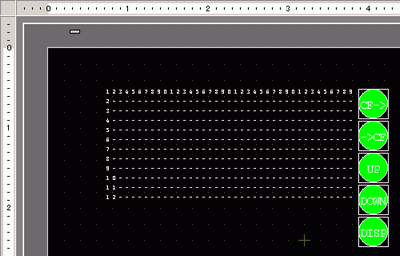

from the toolbar. Place the Part on the screen.

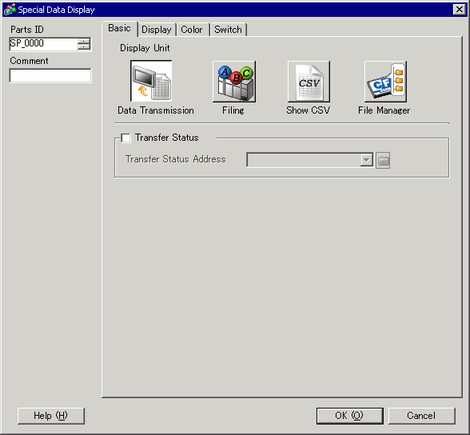

Double-click the new Special Data Display. The settings dialog box appears.
Select the [Display] tab. Set the [Font] and [Display Format].
Select the [Color] tab and set the text and background color.

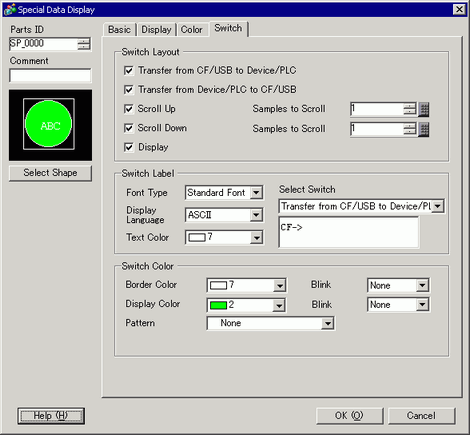

Select the [Switch] tab and select the operation switches you want to place.
Set the number of rows that a scroll switch moves when pressed.
Select the shapes, label and text color, and click [OK (O)].
Depending on the switch type, [Switch Color] may be enabled.
When you select a switch and press the [F2] key, you can directly edit the text on the label.

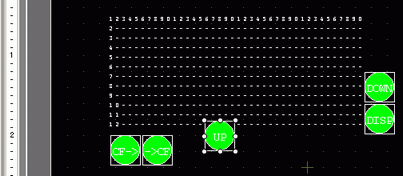

The Special Data Display Part [Data Transmission] is now configured. You can move the switches to the appropriate locations.
If you want to display CSV data on the screen of the display unit, place a Special Data Display [Show CSV].25.7 Displaying/Editing CSV data on the Screen
