To display data in a Special Data Display [Show CSV], you need a Special Data Display [File Manager] to select files to display.
A Special Data Display [File Manager] appears using a Special Window or Local Window. If the maximum number of windows are already displayed, the File Manager does not appear. Close another window and touch the [File Manager] display switch again.
12.8 Restrictions

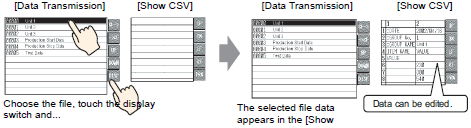

Only when displaying Recipe CSV data, can you select a file in a Special Data Display [Data Transmission] instead of [File Manager].
The following display method is intended for CSV data on a CF Card.

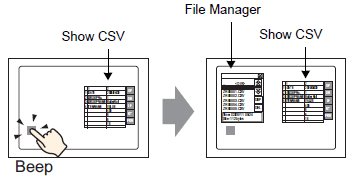

Touch the File Manager Display Switch to call up [File Manager] on the display unit screen.
When the switch is pressed again, the [File Manager] window closes.
The contents of the CF Card's root folder display.
Display Area
Displays the folder names and file names on the CF Card in a list.
The files display in the order in which they were created. You can sort and display data in order of date. You cannot sort data by file names or time stamp.25.9.3.2 File Manager - Extended
The name of the file created in a CF card/USB storage on the PC is displayed with capital letters on a display unit even if the name uses lower case characters. However, if the files are saved to a CF Card/USB storage from the FTP server, upper-case and lower-case letters will be distinguished on the display unit. This also applies to folder names.
Up to 19 characters in file names can be displayed. If a name uses more than 19 characters, the first 16 characters will be displayed and the rest will be shown as "...".
Up to 14 characters in folder names can be displayed. If a name uses more than 14 characters, the first 11 characters will be displayed and the rest will be shown as "...".
Information
When you select a folder, the folder creation date displays. Selecting a file displays the creation date and size of the file.

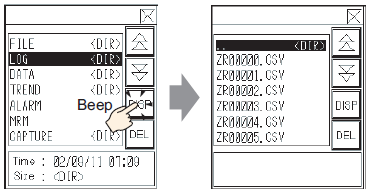

Selecting the folder and touching the [DISP] key displays a list of all the files in the folder.
To navigate to a higher hierarchical folder, select the [ ..<DIR>] row then touch the [DISP] key.
Select a file, and then touch the [DISP] key to view the file in the [Show CSV] dialog box.
In the [File Manager], if you select files that are not CSV files and then touch the [DISP] key, those files do not appear in the [Show CSV] part.
If the CF Card is removed or the cover of the CF Card slot is opened while the CSV file displays, the [Show CSV] dialog box is cleared.
Switching screens clears the [Show CSV] display.
You can display all CSV data (Alarm History Data and Sampling Data) created with the display unit in the Special Data Display [Show CSV]. The [Show CSV] display works with exclusive scroll switches (Scroll Up, Down, Left, Right).
You can enter a maximum of 100 characters in each cell.
Each cell displays as text. The display is fixed as left-aligned.
Character Code in the CSV File is Native only (press Shift JIS for Japanese). Western European languages will be displayed using Code Page 1252.)
The outer borders are 2-dot lines, and the inner borders are 1-dot lines. Two-dot spaces are left between the borders that separate the cells and the data in the cells.
The height of the cell is adjusted depending on the font size.
The width of each cell adjusts depending on the text width. When the number of characters is five or less, the width is set to five characters.
The screen position of Special Data Display [File Manager] can be changed.
Touch the top of the [File Manager] Display.
Touch the desired position on the screen where you want the display to move.
The [File Manager] moves to the specified location.
If the [File Manager] Display runs off the screen at a specified position, the coordinates adjust so that the entire window displays.
