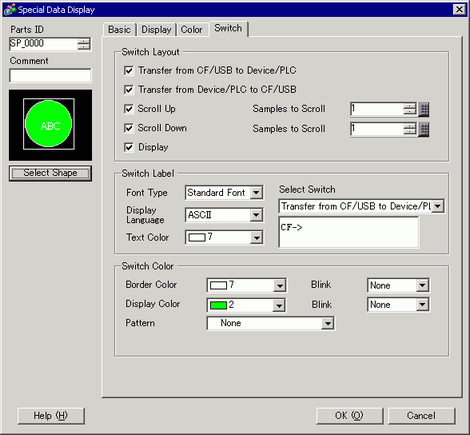

25.9.1.4 Data Transmission - Switch

Transfer CF/USB to Device/PLC

Select to place a switch to transfer CSV data from CF Card/USB storage to the device/PLC.

Transfer Device/PLC to CF/USB

Select to place a switch to transfer CSV data from CF Card/USB storage to the device/PLC.

Scroll Up

Select to place a switch to scroll up the Data Display.

If you touch this switch while CSV data is selected, the selection cancels.

Scroll Down

Select to place a switch to scroll down the Data Display.

If you touch this switch while CSV data is selected, the selection cancels.

Samples to Scroll

When the [Scroll Up] and [Scroll Down] switches are placed, designate how many rows they scroll when pressed. The setting range is from 1 to 100.

Display

Select to place a switch to display selected CSV file in the [Show CSV] Display.

If you touch this switch when multiple CSV files are selected, the top CSV file displays in the [Show CSV].

Font Type

Choose the label font for the switches from [Standard Font] or [Stroke Font].

Display Language

Select a language for the label on the switch from [Japanese], [ASCII], [Chinese (Traditional)], [Chinese (Simplified)], [Korean], [Cyrillic], or [Thai].

Text Color

Select the font color that will display on the switch labels.

Select Switch

Select the switch that you want to type a label for.

Label

Enter the text that you want to display on the switch selected in [Select Switch].

Border Color

Select a border color for the Switch.

Display Color

Set the switch color.

Pattern

Select the switch pattern from 9 types.

Pattern Color

Select the switch pattern color.

Blink

Select the blink and blink speed. You can choose different blink settings for the [Border Color], [Display Color] and [Pattern Color].
