25.13 Transferring Recipes (Filing Data) Using Touch (Manual Transfer)

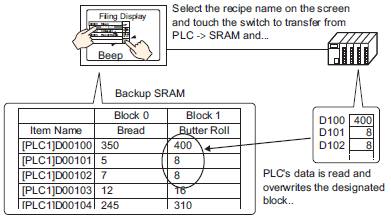

On the display unit, display a list of the filing data (recipes) stored in backup SRAM. Select which items you want to write to the device/PLC.

Also, device/PLC data overwrites the selected recipes in backup SRAM.

When you transfer from device/PLC to Backup SRAM, you cannot save as a new recipe. If you do not want to overwrite existing data, create an empty recipe in advance.
You cannot edit backup SRAM filing data on the screen.
When transferring via the internal device, you can edit data stored in the internal device by using a Data Display part.
