For details about the setting screen, refer to the setting guide.
M.19.1.2 Main Unit - Video Settings (Video)
When video is not being displayed properly, you can check whether video signals are being received by the display unit.
For details about the setting screen, refer to the setting guide.M.19.1.2 Main Unit - Video Settings (Video)
When the movie function of the GP-3*50 series is used
Go to offline mode and touch [Main Unit] on the item changeover switch.
[Main Unit] screen opens. Touch [Video Settings].
[Video Settings] screen opens. Touch [Video Display].

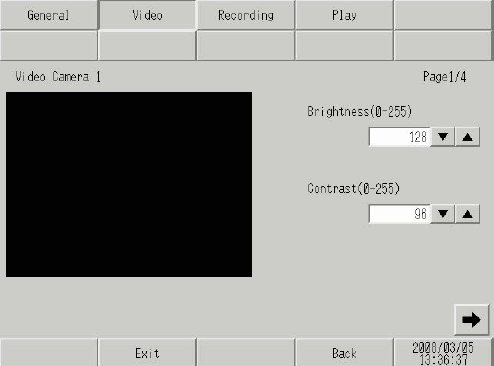

[Video Display]. When a video image appears in the left area of the screen, images have reached the display unit. If no image is displayed in this area, check the connection of the video device.
When using the VM unit
For details about the setting screen, refer to the setting guide.M.20.1.2 Main Unit - VM Unit Settings (Video Display Adjustments)
Go to offline mode and touch [Main Unit] on the item changeover switch.
[Main Unit] screen opens. Touch [VM Unit Settings].
[VM Unit Settings] screen opens. Touch [Video Display Adjustment].

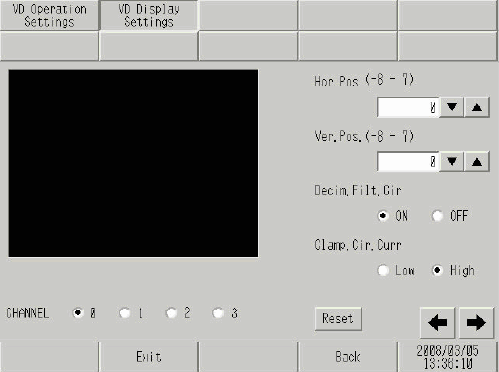

[Video Display Adjustment] screen opens. When a video image appears in the left area of the screen, images have reached the display unit. If no image is displayed in this area, check the connection of the video device.
