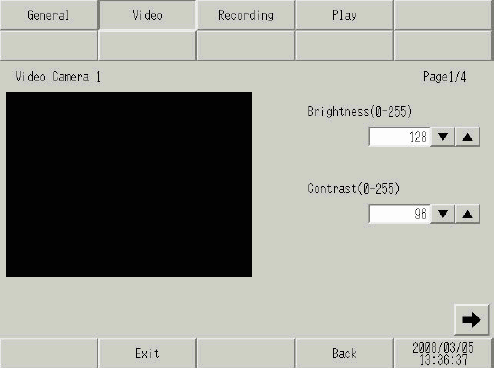

(1/4)
Brightness
Set the brightness of the video camera. The available range is between 0 and 255.
Set the contrast of the video camera. The available range is between 0 and 255.

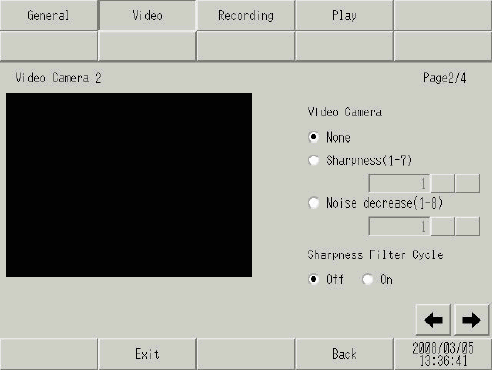

(2/4)
Video Camera
Select the adjustment type of the video camera from [None], [Sharpness], and [Noise decrease]. [Sharpness] displays subjects more clearly. It may also display more noise. [Noise decrease] decreases the contrast to mask any noise. [Sharpness]: Specify from 1 (weak) to 7 (strong).
Sharpness Filter Cycle
Set whether to emphasize the outline of the brightness signal. This allows a clearer representation of the details of the image.

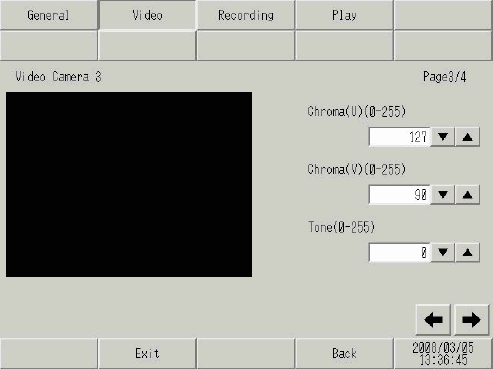

(3/4)
Chroma (U) (0-255)
To represent colors using three types of information: brightness signals (Y); the difference between brightness signals and blue components (U); and the difference between brightness signals and red components (V) (i.e. YUV representation), set the difference between brightness signals and blue components to a value between 0 and 255. When human eyes are used to adjust this value, more data can be assigned to the brightness information, resulting in a high data compression ratio with less degradation in image quality.
Chroma (V) (0-255)
To represent colors using three types of information, luminance (Y), blue chrominance (U), red chrominance (V) (YUV format). Set the difference between luminance and red composition with a value between 0 and 255. When human eyes are used to adjust this value, more data can be assigned to the brightness information, resulting in a high data compression ratio with less degradation in image quality.
Tone
Set the color tone of the video camera screen. The available range is between 0 and 255.

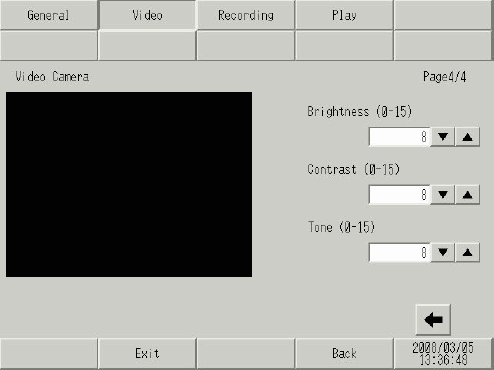

(4/4)
