M.15.2.9 Main Unit - Remote Viewer Settings
Set the GP-Viewer EX and Web Server functions.
For details about the setting screen, refer to the setting guide.M.15.2.9 Main Unit - Remote Viewer Settings
Go to offline mode and touch [Main Unit] on the item changeover switch.

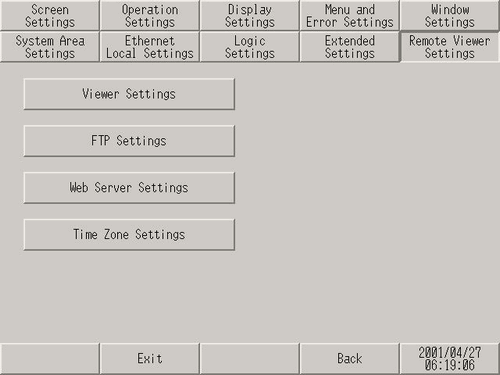

[Main Unit Settings] screen opens. Touch [Remote Viewer Settings].
[Remote Viewer Settings] screen opens.

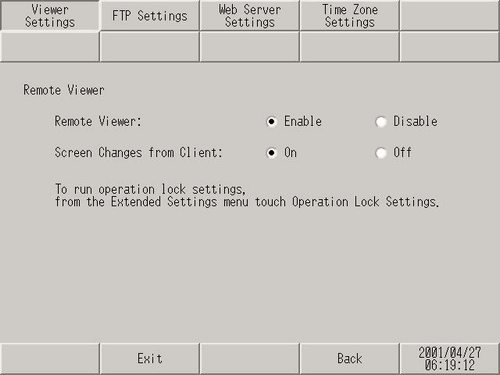

[Viewer Settings]. To use GP-viewer EX, in this screen set [Remote Viewer] to [Enable]. [Web Server Settings]. To use the Web Server feature, set [Web Server] to [Enable].
[Exit] saves the changes and restarts the display unit.
[Remote Viewer] settings can also be set up in the GP-Pro EX System Settings window. For details, see the following.37.15.2 System Settings - Display Unit - Remote Viewer Settings Guide
