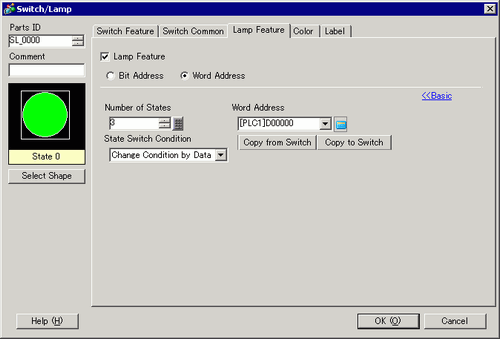

Select this when using a Word address.
Number of States
Define the number of Lamp color states, from 2 to 256.
To set 17 colors for one lamp, the number of states is 17.
State Switch Condition
Using 16 bit addresses in a Word address, one lamp displays the combination of the bit addresses' ON (1)/OFF (0) states with different colors.
Change Condition by Bit
The color of the lamp is changed according to the ON/OFF state of the individual 16 bit addresses.
13.5 Changing Word Address Bits (Bit Settings)
Change Condition by Data
You can change the Lamp state by storing a value between 0 and 255.
The color of the lamp changes corresponding to the ON/OFF value of the bottom 8 bits in the specified word address. You can define up to 256 different sets of colors.13.6 Change When Word Address Value Changes
This setting is disabled when [Number of States] is 2 or less.
The lamp does not display normally if the bit states are outside the defined [Select State] options. For example, if the [Number of States] is 3, you can use states 0, 1, and 2. Turning on bits 1 and 2 creates invalid state 3, and the lamp continues to display its previous valid state.
Word Address
Specify the Word address to turn ON/OFF the lamp.
Color
Select the Lamp color. The display will show a different colored image as the selected part image.
Depending on the shape, you may not be able to set the [Display Color], [Pattern Color], [Border Color], [Color], and so on.
