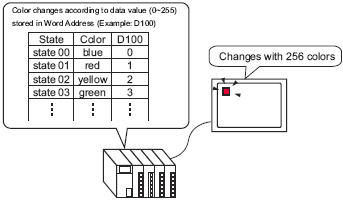

You can monitor the word address value in single lamp by displaying different colors for different values. You can display up to 256 states.
If the state display is set to [Interlock Feature] or [Delay Feature], then [Show Interlocked Condition] has the highest priority followed by [Show In-Delay Status]. Consequently, the lamp may not display as expected. You can access this option from the [Switch/Lamp] dialog box, select the [Switch Common] tab and then select [Detail].
