Select this when using multiple bit addresses.
Number of States
Define the number of Lamp color states, from 2 to 16.
To set 4 colors for one lamp, the number of states is 4.
State Switch Condition

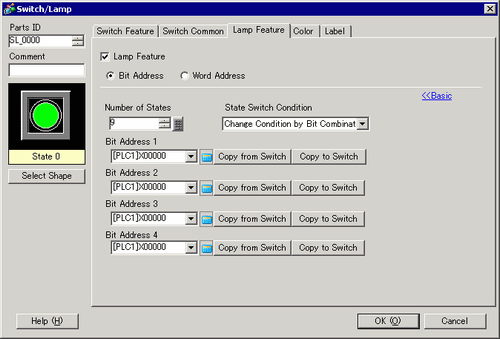

Using four bit devices, one lamp displays the combination of the bit addresses' ON (1)/OFF (0) states with different colors.
Change Condition by Bit
The color of the lamp is changed according to the ON/OFF state of the individual four bit addresses.
13.3 Turning Multiple Bits ON/OFF (Up to 5 States)
Change Condition by Bit Combination
The color of the lamp is changed according to the combination of the ON/OFF states of the four bit addresses.13.4 Changing Multiple Bits (Up to 16 States)
This setting is disabled when [Number of States] is 2 or less.
The lamp does not display normally if each bit is in the state outside of the defined [Select State] options. For example, if the [Number of States] is 3 with the [Change Condition by Bit] option, you can use states 0, 1, and 2. Turning on bits 1 and 2 creates invalid state 3, and the lamp continues to display its previous valid state.
Bit Address
Specify the bit address to turn ON/OFF the lamp.
The number of addresses to set differs according to the specified [Number of States] or [State Switch Condition].
