The following procedure uses a total of four bits in a lamp to display different colors for movement (right, left and stop), the error notification bit, and the all OFF state.
From the [Parts (P)] menu, point to [Switch Lamp (C)] and select [Lamp (L)] or click
to place a lamp on the screen.
Double-click the placed lamp. The Switch/Lamp dialog box appears. Click [Extended].

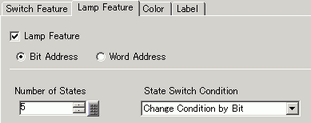

Set the [Number of States] and [State Switch Condition]. Setting the [Number of States] to 3 or more allows you to set [State Switch Condition]. (For example, [Number of States] = 5, [State Switch Condition] = Change Condition by Bit)

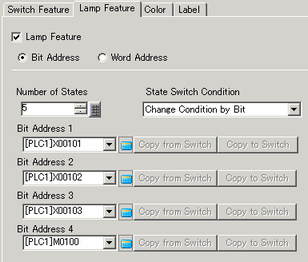

Set [Bit Address 1]. From [Input Address] dialog box select the device/PLC and set X101 to the device address, and click [Ent]. (For example, X101).
Also, set [Bit Address 2] to [Bit Address 4] as follows.
(For example [Bit Address 2] X102, [Bit Address 3] X103, [Bit Address 4] M100)
Each [State] is defined as the ON (1)/OFF (0) of the corresponding bit address.
|
State |
Description |
|||
|---|---|---|---|---|
|
Bit Address 4 |
Bit Address 3 |
Bit Address 2 |
Bit Address 1 | |
|
[State 0] |
0 |
0 |
0 |
0 |
|
[State 1] |
0 |
0 |
0 |
1 |
|
[State 2] |
0 |
0 |
1 |
0 |
|
[State 3] |
0 |
1 |
0 |
0 |
|
[State 4] |
1 |
0 |
0 |
0 |
When multiple bits turn ON at the same time, the lamp displays in ascending order [Bit 1]->[Bit 2]->[Bit 3]->[Bit 4].
In [Select Shape], select the lamp shape for each [State].
Click the [Color] tab. In the [Select State] list, select [State 0] and define its [Display Color].
[State 0] is the state where all the specified bit addresses are OFF.
Select [State 1] in [Select State] and set the [Display Color]. [State 1] is the state where the specified Bit Address X101 is ON.
Set [Display Color] for [State 2] to [State 4].
When clicking the button beside [Select State]
, you can change the state without displaying a list.
Depending on the shape, the color setup procedure may differ from the procedure described above. Click [Select Shape]. The [Select State] window appears. Select each state and click [Open] to select a shape and color.
Depending on the shape, you may not be able to change the color.
Click the [Label] tab. Define the label to appear on the Lamp. Specify the font type and size, and then in the rectangular field type the text to display. Click [OK].
When you select a lamp and press the [F2] key, you can directly edit the text on the label.
