18.15 XY Historical Scatter Graph Settings Guide

The values of two Word devices collected with the Sampling settings are displayed in x-axis/y-axis coordinates of a graph.

Please refer to the following for models compatible with XY Historical Scatter Graphs.
1.3 Supported Features

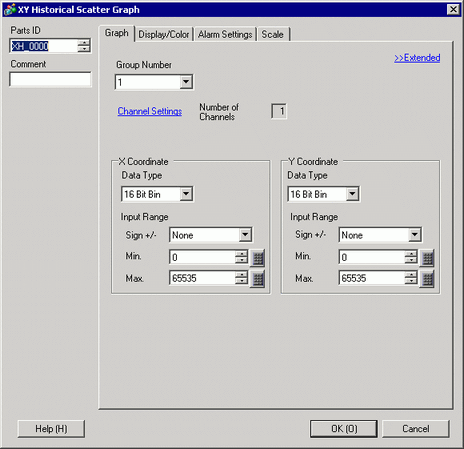

Parts ID

Parts are automatically assigned an ID number.
XY Historical Scatter Graph ID: XH_**** (4 digits)

The letter portion is fixed. You can change the number portion to within the range of 0000 and 9999.

Comment

The comment for each Part can be up to 20 characters.
