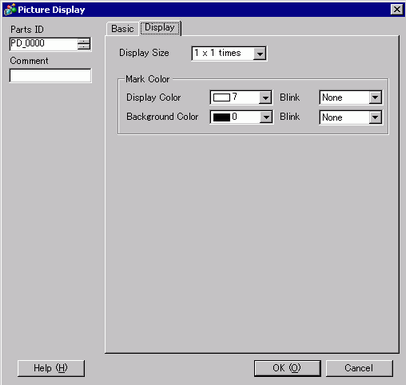

9.6.2.4 State Display - Display Settings (Selecting a Mark)

Display size

Set the display size of a picture registered in the Mark Screen. Set within the range of minimum size (1 x 1) and maximum size (8 x 8).

Mark Color

Set the color of a picture registered in the Mark Screen.

Display Color

Select a color for the mark to display.

Background Color

Select a background color for the mark to display.

Blink

Select the blink and blink speed. You can choose different blink settings for the [Display Color], and [Background Color].

  • There are cases where you can or cannot set Blink depending on the Display Unit and [Display] tab's [Display Settings] area.
    8.5.1 Setting Colors
