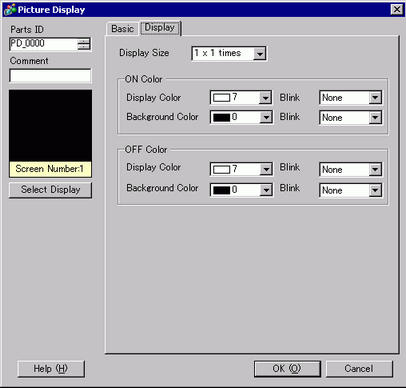

9.6.1.4 ON/OFF Display - Display Settings (Selecting a Mark)

Display size

Set the display size of a picture registered in the Mark Screen. Set within the range of minimum size (1 x 1) and maximum size (8 x 8).

ON Color

Set the color of the mark to display when the trigger bit address turns ON.

Display Color

Select a color for the mark to display.

Background Color

Select a background color for the mark to display.

Blink

Select the blink and blink speed. You can choose different blink settings for the [Display Color], and [Background Color].

  • There are cases where you can or cannot set Blink depending on the Display Unit and [Display] tab's [Display Settings] area.
    8.5.1 Setting Colors

OFF Color

Set the mark screen color to display when the trigger bit address turns OFF.

Display Color

Select a color for the mark to display.

Background Color

Select a background color for the mark to display.

Blink

Select the blink and blink speed. You can choose different blink settings for the [Display Color], and [Background Color].

  • There are cases where you can or cannot set Blink depending on the Display Unit and [Display] tab's [Display Settings] area.
    8.5.1 Setting Colors
