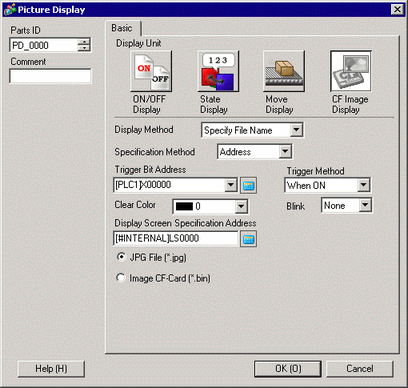

Display Method
Set the method of displaying a file saved in a CF card.
Specify File Name
Specifies the file name of an image file (BMP or JPEG converted file) or a JPEG file stored in a CF card and displays the image.
Specification Method
Set the method of specifying a file saved in a CF card.
Address
Uses an address to specify the file name and folder path of an image to display on the screen.
For more details, please refer to the following.
9.7.4 Restrictions for Picture Display (CF Image Display)
Trigger Bit Address
Set the bit address which controls the image display.
Trigger Method
Set whether to display an image with the bit address ON or OFF.
Clear Color
Set the color when there is no image display.
Blink
Select the blink and blink speed.
There are cases where you can or cannot set Blink depending on the Display Unit and [Display] tab's [Display Settings] area.8.5.1 Setting Colors
Display Screen Specification Address
Set the address which specifies the image file to display.
Specify the data to store with a full path (folder name and file name). The full path should be 20 single-byte characters (10 words) or less. If it is less than 20 characters, be sure to store "00h" at the end.
Put "\" between the folder name and file name in a full path.
The file name should be 8 single-byte characters or less. Only Bin and JPEG files are supported.
Only display unit internal addresses (LS or USR) can be set in the [Display Screen Specification Address].
For example, displaying an image file (LOGO.bin) in the [DATA] folder in a CF card (Display Screen Specification Address: LS1000)
JPG File (*.jpg)
Select this when you display a JPG file.
Image CF (*.bin)
Select this option when you specify an image file (*.bin) saved in a CF Card Folder or a CF card.
