14.11.1.7 Numeric Display - Alarm/Color/BasicFor details about placing parts or setting addresses, shapes, or colors, please refer to the "Part Editing Procedure".
8.6.1 Editing Parts
Please refer to the Settings Guide for details.14.11.1.7 Numeric Display - Alarm/Color/Basic
For details about placing parts or setting addresses, shapes, or colors, please refer to the "Part Editing Procedure".8.6.1 Editing Parts
From the [Parts (P)] menu, point to [Data Display (D)] and select [Numeric Display (N)], or click the
icon, and place it on the screen.
Double-click the placed Data Display. The following dialog box appears.
Select the Data Display shape from [Select Shape].
In [Monitor Word Address], set the address that will store the Value to display..
In the [Data Type] drop-down list, select the type of data to display (for example, "16 Bit Dec").
Click the [Alarm/Color] tab, and select the [Alarm Settings] check box.
In the [Alarm Action] field, select the method used to define the Lower Limit and Upper Limit values from either [Direct] or [Address] (for example, [Direct]).

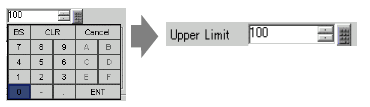

In [Alarm Range], set the Upper Limit (for example, 100) and Lower Limit (for example, 0).
In the [Alarm Color] area, set the [Numeric Value Color] (for example, Red) and the [Plate Color] (for example, Yellow).
As needed, set the Data Display text on the [Display] tab, and click [OK].
