Please refer to the Settings Guide for details.
14.11.1 Numeric DisplayFor details about placing parts or setting addresses, shapes, or colors, please refer to the "Part Editing Procedure".
8.6.1 Editing Parts
Please refer to the Settings Guide for details.14.11.1 Numeric Display
For details about placing parts or setting addresses, shapes, or colors, please refer to the "Part Editing Procedure".8.6.1 Editing Parts
From the [Parts (P)] menu, point to [Data Display (D)] and select [Numeric Display (N)], or click the
icon, and place it on the screen.
Double-click the placed Data Display. The following dialog box appears.
Select the Data Display shape from [Select Shape].
In [Monitor Word Address], set the address that will store the Value to display..
Set the type of data that will be displayed (for example, "16 Bit Bin") in [Data Type].
As needed, set the Data Display color and text on the [Alarm/Color] tab and [Display] tab, and click [OK].
Next, set the switch which will operate the addition action. From the [Parts (P)] menu, point to [Switch Lamp] and select [Word Switch], or click
and place it on the screen.

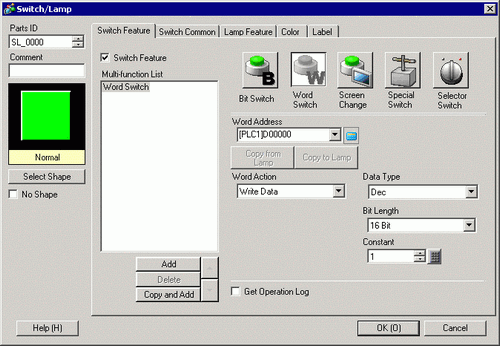

Double-click the placed Switch part. The following dialog box appears.
In [Select Shape], select the Switch shape.
Set the address (D100) where you want to write data when you touch the switch in [Word Address].
From [Word Action] choose [Add Data].
Set the address (D100) which will add the data in [Addition Base Word Address].
Set [Data Type] to [Bin] and [Constant] to "1" and click [OK]. The addition action's Word switch function is now set.
Next, set the switch which will operate the subtraction action. From the [Parts (P)] menu, point to [Switch Lamp] and select [Word Switch], or click and place it on the screen.
Double-click the placed Switch part. The following dialog box appears.
In [Select Shape], select the Switch shape.
Set the address (D100) where you want to write data when you touch the switch in [Word Address].
Choose [Subtract Data] from [Word Action].
Set the address (D100) which will subtract the data in [Subtraction Base Word Address].
Set [Data Type] to [Bin] and [Constant] to "1" and click [OK]. The subtraction action's Word switch function is now set.
