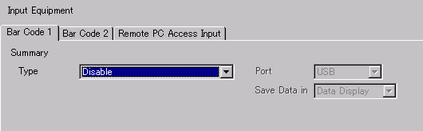

16.4.1 Input Equipment (Bar Code 1/Bar Code 2) Settings

Type

Select the barcode type to connect.

Select when a barcode/two-dimensional code reader is not in use.

Select when using a barcode reader.
16.4.1.1 Bar Code Reader

Select when using a two-dimensional code reader.
16.4.1.2 Two-dimensional Code Reader

Port

Select the port to connect [COM1], [USB], or [USB/SIO].

Save Data in

Select the code data storage location as either [Data Display] or [Internal Device].
