Data Display
Stores the data in the [Monitor Word Address] set on the Data Display part.
Internal Device
Store the data in the Internal Device Address.
Internal Device Storage Start Address
Set the internal device address to store the read code data.
Extended
Read Completion Bit
Determine whether to turn ON the read completion bit address if the entire data has been written to the internal device address.
When [Read Completion Bit] is not set, the data is overwritten if read continuously.
Enable
Enable the read completion bit.
Bit Address
Set the read completion bit address.
Please return this bit to OFF after input has been completed. The display unit will not read code data without turning the read completion bit OFF.

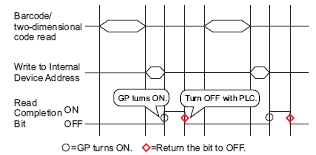

The barcode/two-dimensional code's read timing and the [Read Completion Bit Address]'s action are as follows:
Data size
Defines the size of the code data stored to internal device addresses.
Unlimited
Set the code data size stored in the internal device address at read time to unlimited.
If the read code data exceeds the enabled area, the excess data will not be written.
Specified Size
Set the code data size stored in the internal device address at the read time from 1 to 9,999.
If the read code data exceeds the [Specified Size], the excess data will not be written to the internal device address.
Initialization Settings
Select the processing method when overwriting the read data code data from [None], [Zero Clear] or [Space Clear].

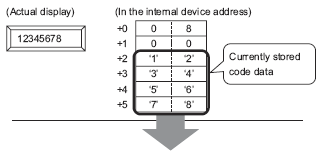

For example, when code data "12345678" is stored, and then code data "ABCDE" is stored, the [Data Size] is 8 bytes.
Previous Display: The 8-byte code data "12345678" is stored.
Current Display: Reads the 5-byte code data "ABCDE".

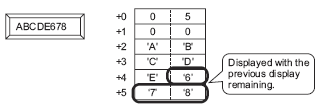

For [None]

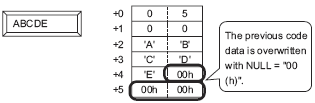

For [Zero Clear] (data clear with Null)

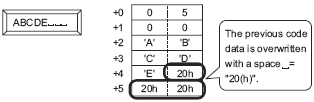

For [Space Clear]
