19.10.1.1 Alarm Guide
Please refer to the Settings Guide for details.19.10.1.1 Alarm Guide

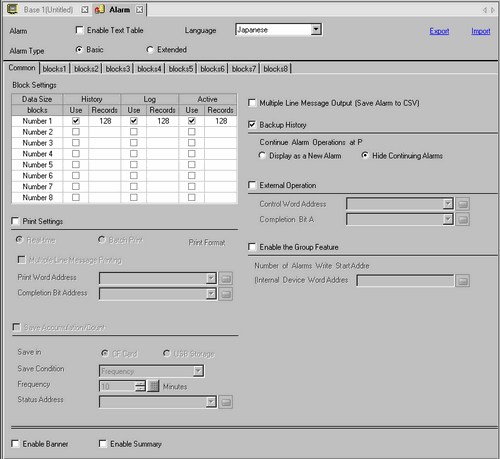

From the [Common Settings (R)] menu, select [Alarm (A)], or click
. The following screen appears. In [Language], select the alarm message display language.
Select the [Enable Banner] check box.

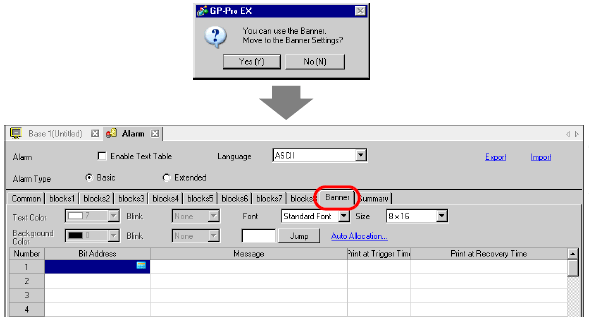

When the following notice message appears, click [Yes]. The [Banner] tab is displayed.
Set the [Bit Address] to monitor the alarm trigger.
In the [Message] column, enter a message to display when an alarm is triggered, and specify [Text Color], [Background Color], and [Blink].
Up to 512 alarm messages can be registered.
Set the monitoring bits within 128 Words for the whole Alarm Message (Banner).
Up to 160 single-byte characters can be registered in a single Alarm Message.
When the [Enable Text Table] check box is selected, the message language can be switched and displayed even while the system is running.17.4 Changing a Text's Language (Multilanguage)
Alarm settings can be exported or imported in CSV format.
You can show Alarm messages in banners or Memory Link (Ethernet) messages in banners, but not both. If you set both, an error will occur and the transfer cannot be performed. Please decide between the two.
The alarm message can be updated on startup or at any timing by reading it from the external memory without transferring the project data. For details on the settings, refer to the following.17.8 Changing Text Table without Data Transmission
