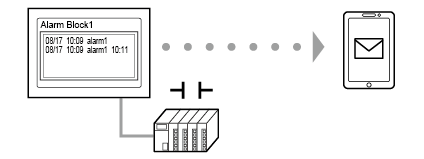

When alarm are triggered, acknowledged or recovered, you can distribute e-mail to the prepared e-mail receivers.
Procedure – Sending E-mail on Alarm Trigger/Recovery
The following message with the alarm trigger and recovery date and messages are added to the e-mail body. The data format and time format are fixed to yy/mm/dd and hh:mm.
Example 1: Alarm trigger
[Alarm Active]
19/08/17 10:09 Abnormal pressure
Example 2: Alarm recovery
[Alarm Restore]
19/08/17 10:11 Abnormal pressure
When using Pro-face Remote HMI feature, you can add a link to launch Pro-face Remote HMI in the e-mail. The link works only when the e-mail receiver is an Android or iOS client. Additionally, Pro-face Remote HMI Ver.1.50 or later is required.
