Introducing an Environmental Protection Cover to Protect Manufacturing Site Displays from Oil and Chemicals
Posted: May 25, 2015

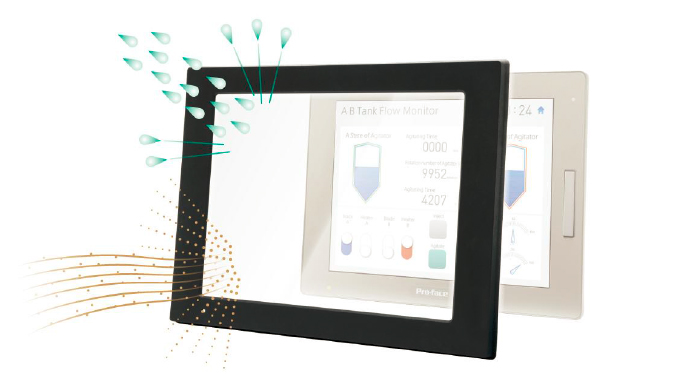

Pro-face, the global leader in Human Machine Interface (HMI) and factory data communication solutions will soon release an optional dedicated "Environmental Protection Cover" to protect Pro-face interfaces installed on equipment at manufacturing sites from corrosion due to chemicals and oil mist used in factories.
In manufacturing sites that use chemicals and industrial oils, corrosion on various types of equipment eventually occurs due to extended use of these chemicals and oils. For this reason, periodic maintenance and equipment replacements were needed. However, by attaching Pro-face's environmental protection cover, corrosion's march can be halted, thus reducing the time and effort needed for maintenance.
In manufacturing sites that use chemicals and industrial oils, corrosion on various types of equipment eventually occurs due to extended use of these chemicals and oils. For this reason, periodic maintenance and equipment replacements were needed. However, by attaching Pro-face's environmental protection cover, corrosion's march can be halted, thus reducing the time and effort needed for maintenance.
| Product Name | Model# | Release Date |
|---|---|---|
| 15" Environmental Protection Cover | PFXZCDOP151 | May 25, 2015 |
| 12" Environmental Protection Cover | PFXZCDOP121 | |
| 10" Environmental Protection Cover | PFXZCDOP101 |
Main Features of the Environmental Protection Cover
1. Improved tolerance to various chemicals and oils
This product prevents corrosion due to the various chemicals and oils used in factories. *1
|
|
*1 Information regarding chemical resistance is provided by the material’s manufacturer. This does not mean the level of protection is suitable for all conditions and environments. When using this product, examine your specific requirements and check if the level of conformity is suitable for your needs.
2. Simple installation
With no special tools required, the cover can be installed immediately after purchase.
3. Usable with monitors of various sizes
This product comes in 3 sizes to fit 15-inch, 12-inch, and 10-inch Smart Portal SP5000 Series Premium Displays and FP5000 Series Industrial Flat Panel Monitors.
Main Specifications
| 15" | 12" | 10" | |
|---|---|---|---|
| Model# | PFXZCDOP151 | PFXZCDOP121 | PFXZCDOP101 |
| Structure | IP67F *2 (The display unit's structural protection rating when applying this product depends on the display unit itself. For more information, please refer to the display unit's hardware manual.) |
||
| Material | Rubber: NBR (Nitrile butadiene rubber) Sheet: PET (Polyethylene terephthalate) |
||
| Weight | 350 g (0.77 lb) or less | 250 g (0.55 lb) or less | 200 g (0.44 lb) or less |
| External Dimensions with Environment Cover | Width: +9.7mm (+0.38 in.) when attached. *3 Height: +9.7mm (+0.38 in.) when attached. *3 |
||
| Panel Thickness Area | 1.6 to 3.2 mm ( 0.06 to 0.13 in. ) (With the Environment Cover at tached, the panel thickness range is narrower.) |
||
*2 IP67F is not part of the UL certification.
*3 For details on external dimensions of SP5000 Series, please refer to the Hardware Manual.
*3 For details on external dimensions of SP5000 Series, please refer to the Hardware Manual.
