How to set the port number |
 |
How to enter the OFFLINE mode
After power-on |
|
Touch the upper right corner or the upper left corner (within 40 pixels of the edge) of the panel for at least 3 seconds soon after the startup screen is displayed. |
 |
|
|
During operation |
|
Touch either the upper right and the lower left corners, or the upper left and the lower right corners (within 40 pixels of the edges) of the panel in this order within 0.5 second. |
 |
|
|
|
The system menu is displayed, then touch [Offline]. |
 |
Port Number Settings
|
From the OFFLINE mode's [Main Unit Settings] menu, select [Ethernet Local Settings]. |
|

|
|

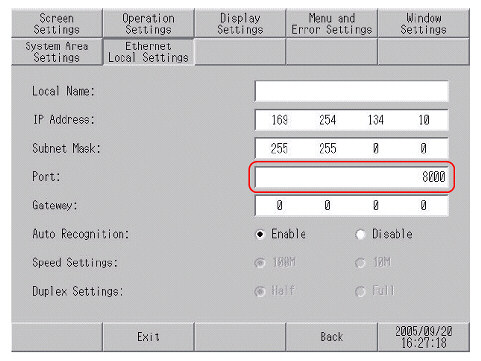

Touch the [Port] input field and enter the port number. |
|
|
