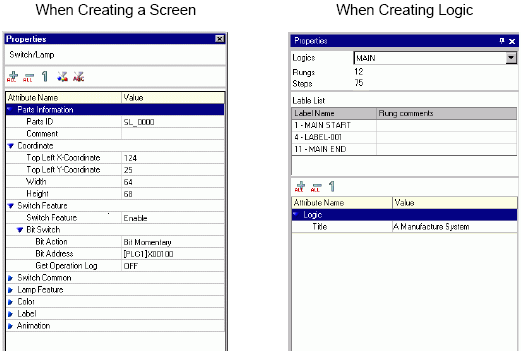

Displays the selected part or screen attributes/settings. Using this window, you can check the attributes or change the settings.
Not all of the setting information for the selected part will be displayed in this window.
Attributes and settings for parts with fixed pins
do not display. For more details on fixed pins, please refer to the following.
8.4.13 Protecting Objects That You Do Not Want to Edit
Part Name Display Area
(When creating a screen)
The name of the selected part or screen is displayed. If multiple parts are selected, the number of selected parts is displayed.
Part Name Display Area
(When creating logic)
For more information about creating a logic program using the [Logic Program Window], see 29.13.5 Using Reference Features to Search Logic Programs.
Logic
When creating a [MAIN], [INIT], or subroutine screen, select the logic screen from [SUB-01] to [SUB-32].
Total Number of Rows
Displays the total number of rows in the logic program.
Total Number of Steps
Displays the total number of Steps in the logic program.
Label List
Displays a list of the labels in the logic program.
Button Area
Opens and closes the attributes list.
Expand All
Expands and displays all categories.
Collapse All
Reduces and hides all categories.
Expand to 1st level
Expands and displays only top level categories.
Shape
Displays the label settings of the selected part.
Label
Displays the label settings of the selected part.
Attribute Display/ Setting Area
Displays the setting content for each attribute. You can change the attributes in this list.
