5.18.3.6 Project Information - Password
When a password is set, you can set lock the passwords for the script, created screen, and the grouped parts. To edit a part or data where a password lock is set, or to cancel a password lock, you will need to input the set user level password.
Please refer to the Settings Guide for details.5.18.3.6 Project Information - Password
Script (D-Script/Global D-Script)

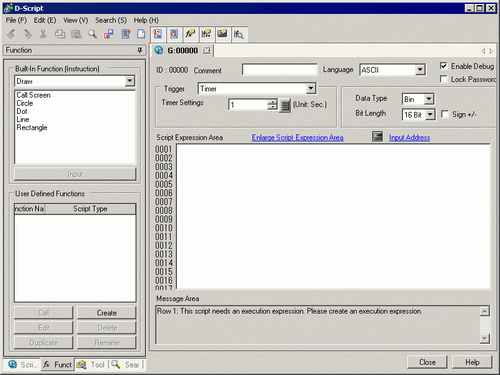

Open the D-Script or Global D-Script editor and select the [Lock Password] check box.
In the dialog box that follows, move the slider to the user level for your password and click [OK].
Input the selected user level password.
Select the [Remember Password] check box so you do not need to input any more passwords when you operate at the same user level in the project.
Click [OK] to complete setup.
Screen (Base Screen, Window Screen, Logic Screen, I/O Screen)

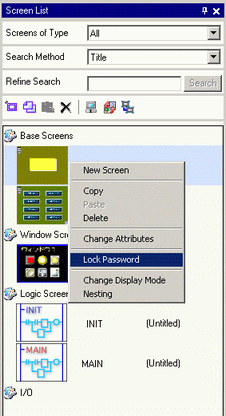

In the [Screen List]window, right-click the screen that you want to set with a password, and select [Lock Password].
In the dialog box that follows, move the slider to the user level for your password and click [OK].
Input the selected user level password.
Select the [Remember Password] check box so you do not need to input any more passwords when you operate at the same user level in the project.
Click [OK] to complete setup.
If you set up user level passwords on individual screens, the [Unlock Password] dialog box displays, where you have to enter the required user level password. If an incorrect password is entered, the screen will display in the screen list, but cannot be edited.
Grouped Parts
Select the grouped parts, from the right-click menu point to [Lock Password] and click [Lock Password].
In the dialog box that follows, move the slider to the user level for your password and click [OK].
Input the selected user level password.
Select the [Remember Password] check box so you do not need to input any more passwords when you operate at the same user level in the project.
Click [OK] to complete setup.
