5.10.1 Procedure - Adding Headers and Footers on a Screen

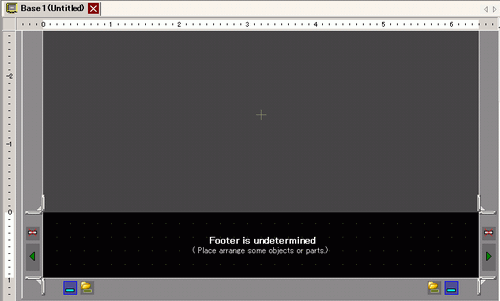

1. To display the footer screen area, from the [View (V)] menu, select [Footer (F)] or click the [Edit Footer] button at the bottom of the screen editor.




   • To display the header screen area, from the [View (V)] menu, select [Header (H)] or click the [Edit Header] button at the top of the screen editor.

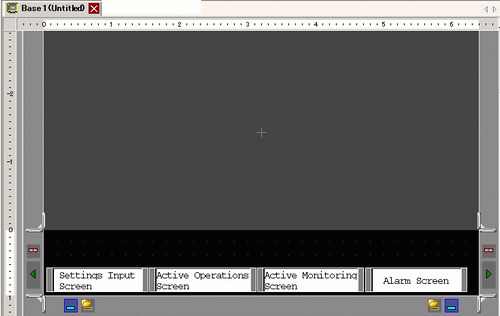

2. Create a screen in the footer editing area.




   • To delete the created footer area, click .

   • To create another footer, click the [Next Footer] button , or click the [Select Footer] button and in the footer list click [New].

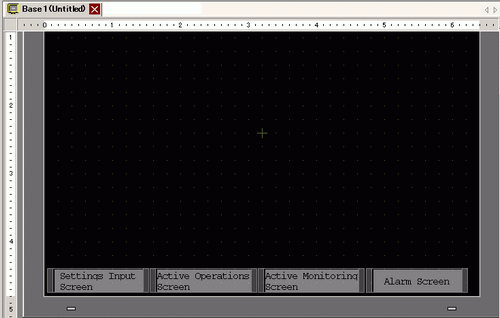

3. Click the [Disable footer edit] button to close the footer area.
