33.4.1 Procedure - Comparing Project Changes Prior to Transfer

Compares the project currently open in GP-Pro EX to that stored on the display unit connected through LAN.

1. On the GP-Pro EX state tool bar, click the Transfer Project icon . The [Transfer Tool] dialog appears.

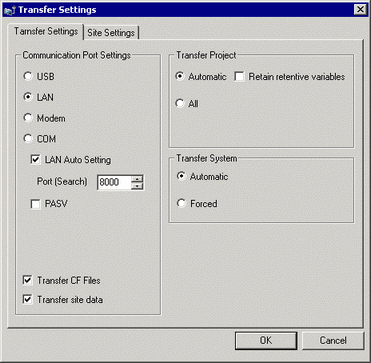

2. Click [Transfer Setting] to display the [Transfer Tool] dialog box. Ensure that [Communication Port Settings] is set to [LAN]. Select the [LAN Auto Setting] check box and click [OK].

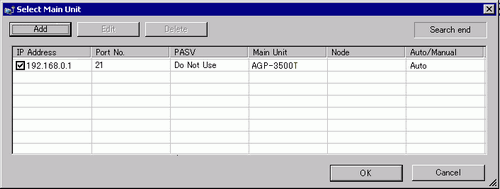

3. Select each IP address of the display unit to compare project data and click [OK].

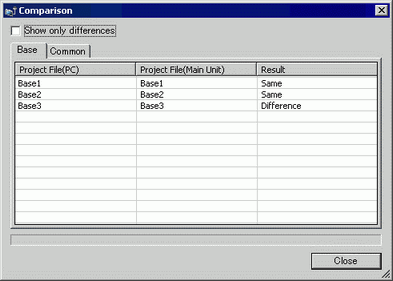

4. The following [Comparison] dialog box appears and displays the results of the comparison between the PC and display unit.





   • Select the [Show Only Differences] check box. The comparison results show screens that are different.

   • The following messages appear when there are no differences in projects and when the projects are different.


   • If the logic programs, or settings that affect logic programs, are different in the compared projects, the [Control Settings] will vary. [Control Settings] indicates settings related to logic programs.

5. After confirming the results, click [Close].
