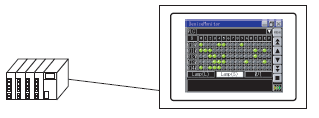

You can monitor specified device addresses of device/PLCs on the display unit screen. Or, change defined address values from the display unit screen. This is useful for debugging.
The screen for the monitor is provided, therefore you do not need to create the base screens.
LT series does not support this feature.
A.2.1 Procedure - Monitoring the Value of Device Addresses (Device Monitor)
A.2.2 Operation - Monitoring the Value of Device Addresses (Device Monitor)
Devices/PLCs that can use Device Monitor
|
Manufacturer |
Device/PLC Name |
|---|---|
|
Mitsubishi Electric Corporation |
A Series CPU Direct |
|
A Series Ethernet | |
|
A Series Calculator Link | |
|
Q series CPU Direct | |
|
Q/QnA Series Ethernet | |
|
Q/QnA Serial Communication | |
|
QnA Series CPU Direct | |
|
FREQROL Inverter | |
|
Q series QnU CPU Ethernet | |
|
FX Series CPU Direct | |
|
FX Series Computer Link | |
|
QUTE Series CPU Direct | |
|
Omron Corporation |
C/CV Series HOST Link |
|
CS/CJ Series HOST Link | |
|
CS/CJ Series Ethernet | |
|
CS/CJ Series EtherNet/IP*2 | |
|
Adjuster CompoWay/F | |
|
PROFIBUS International |
PROFIBUS DP Slave |
|
Siemens AG |
SIMATIC S7 MPI Direct |
|
SIMATIC S7 3964(R)/RK512 | |
|
SIMATIC S7 Ethernet | |
|
SIMATIC S5 CPU Direct | |
|
SIMATIC S5 3964(R) | |
|
Rockwell Automation |
DF1*1 |
|
EtherNet/IP (Not including ControlLogix/CompactLogix Series Native)*1*2 | |
|
DH-485*1 | |
|
Yaskawa Electric Corporation |
MEMOBUS SIO |
|
MEMOBUS Ethernet | |
|
MP Series SIO (Extended) | |
|
MP Series Ethernet (Extended) | |
|
Inverter SIO | |
|
Yokogawa Electric Corporation |
PC link SIO |
|
PC link Ethernet | |
|
JTEKT Corporation |
TOYOPUC CMP-LINK SIO |
|
TOYOPUC CMP-LINK Ethernet | |
|
KEYENCE Corporation |
KV-700/1000/3000/5000 CPU Direct |
|
KV-700/1000/3000/5000 Ethernet | |
|
QnA Series CPU Direct | |
|
KZ-10_80R/T Series CPU Direct | |
|
Schneider Electric Industries |
MODBUS SIO Master |
|
MODBUS TCP Master | |
|
Uni-Telway | |
|
MODBUS Slave | |
|
Panasonic Electric Works Co., Ltd. |
FP Series PC Link SIO |
|
Fuji Electric FA Components & Systems Co., Ltd. |
MICREX-F Series SIO |
|
MICREX-SX Series Ethernet | |
|
Inverter SIO | |
|
Hitachi Industrial Equipment Systems Co., Ltd. |
H Series SIO*1 |
|
H Series Ethernet*1 | |
|
Inverter Modbus RTU | |
|
Inverter ASCII SIO | |
|
Sharp MS Corporation |
JW Series PC Link SIO |
|
JW Series Computer Link Ethernet | |
|
RKC Instrument Inc. |
Controller MODBUS SIO |
|
Temperature controller | |
|
Yamatake Corporation |
Digital Controller SIO |
|
GE Fanuc Automation |
Series90 Ethernet |
|
Series 90-30/70 SNP | |
|
Series 90-30/70 SNP-X | |
|
Mitsubishi Heavy Industries, Ltd. |
DIASYS Netmation MODBUS TCP |
|
MHI STEP3 Ethernet | |
|
LS Industrial Systems Co., Ltd. |
MASTER-K Series Cnet |
|
XGT Series FEnet | |
|
XGT Series Cnet | |
|
Saia-Burgess Controls Ltd. |
Saia S-Bus SIO |
|
Meidensha Corporation., Ltd. |
UNISEQUE Series Ethernet |
|
FANUC Ltd. |
Power Mate Series |
|
ODVA |
DeviceNet Slave |
|
Hitachi, Ltd. |
S10V Series Ethernet |
|
S10 series SIO | |
|
Shinko Technos Co., Ltd. |
Controller SIO |
|
Toshiba Machine Co., Ltd. |
TC Series (TCmini/TC200) |
|
Toshiba Corporation |
Computer Link SIO |
|
Computer Link Ethernet | |
|
Koyo Electronics Industries Co., Ltd. |
KOSTAC/DL Series CCM SIO |
|
KOSTAC/DL Series MODBUS TCP | |
|
CC-Link Partner Association |
CC-Link Intelligent Device |
|
IAI Corporation |
ROBO Cylinder MODBUS SIO |
|
X-SEL Controller | |
|
FATEK AUTOMATION Corporation |
FB Series SIO |
|
CHINO Corporation |
Controller MODBUS SIO |
|
Modbus-IDA |
General-purpose MODBUS RTU SIO Master |
|
General-purpose MODBUS TCP Master | |
|
Hyundai Heavy Industries, Ltd. |
Hi4 Robot |
|
Digital Electronics Corporation of Japan |
Memory Link |
|
No Device/PLC (LT Series) | |
|
General-purpose Ethernet | |
|
General-purpose SIO | |
|
Sanmei Electronics Co., Ltd. |
Si/CutyAxis series SIO |
|
Fuji Electric Systems Co., Ltd. |
Controller MODBUS SIO |
|
Inverter SIO | |
|
CAN in Automation |
CANopen Slave |
|
Control Technology Corporation |
CTC Binary Protocol |
*1 When displaying out-of-range addresses using the Device Monitor's Block Monitor function, addresses within range are also displayed as "*". Do not define the out-of-range addresses.
*2 Device Monitor does not support variables.
A ladder monitor tool is available for reading the PLC ladder program and monitoring on the display unit screen. Please confirm whether your display model supports the ladder model features and purchase the ladder monitor tool for your PLC. Please refer to the "PLC Ladder Monitor Operation Manual" for the ladder monitor operating instructions.
