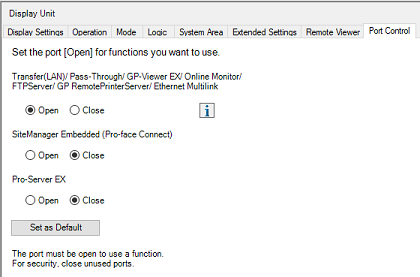

1.5 Supported FeaturesSet ports open or close for each function.
For models that support opening or closing ports, refer to the following.
Transfer (LAN) / Pass-Through / GP-Viewer EX / Online Monitor / FTP Server / GP Remote Printer Server / Ethernet Multilink
Select [Open] when using any of the following functions.
Transfer (LAN)
Pass-Through
GP-Viewer EX
Online Monitor
FTP server
GP Remote Printer Server
Ethernet Multilink
SiteManager Embedded
When using Pro-face Connect and SiteManager Embedded is set up, select [Open].
Pro-Server EX
When using Pro-Server EX, select [Open].
If you select [Close], as the port used for WinGP API is also closed, you will not be able to use the WinGP API. When you want to use the WinGP API, select [Open].
Set as Default
Click [Set as Default] to set the above settings as the default values. The next time you create a project, the registered settings are used as the initial values.
