You can create a customized format with Custom Settings.
You can set each data column's Display Range and Total Display Digits.
You can add Date columns, Time columns, Data columns, Text columns, and Text rows.
You can directly input text in Text columns, Text rows, and Item Name rows.
When in the [Mode] tab's Extended area the [Overwrite old data after finishing the specified cycles] check box is cleared, you can set the calculation rows (Total, Average, Max, Min).
The data, except Item Name and Text in a Data column, Time column, and Data column, are displayed in the center of each cell on the Sampling Data Display.
(For example, Display Format Settings: Number of Item Name Characters = 8, Number of Display Digits = 4, Align Right)

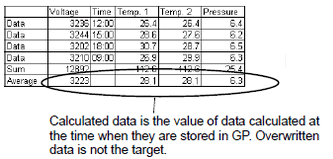

When [Overwrite old data when designated block count finishes] is set
Display Format Settings
Sampling Data Display
Text rows are not displayed even if you set them.

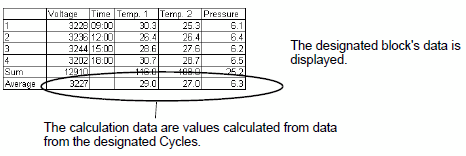

When [Overwrite old data after finishing the specified cycles] is cleared
Display Format Settings
Sampling Data Display
